SKU: FBL-08-MB

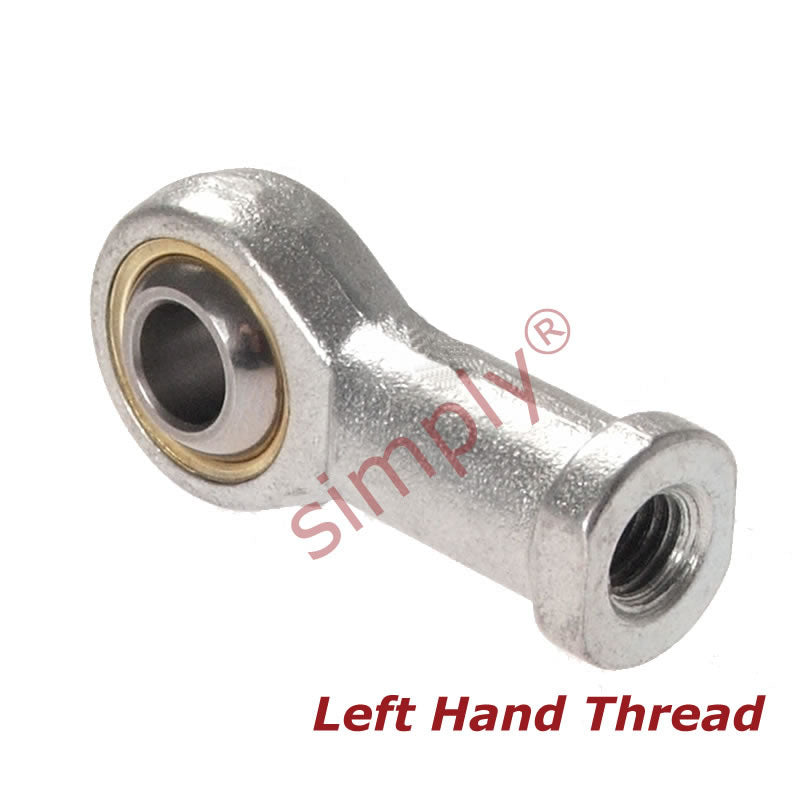

Branded FBL-08 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/2 UNF Thread - Allow 7-10 Days
Branded FBL-08 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/2 UNF Thread - Allow 7-10 Days
Regular price
$31.06
ex VAT
Regular price
Sale price
$31.06
ex VAT
In stock
Price Break
10+
$14.73
19+
$13.90
29+
$13.74
39+
$13.57
49+
$13.41
74+
$13.24
99+
$12.42
199+
$12.25
249+
$12.08
499+
$11.92
999+
$11.59
Quantity
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 1/2 UNF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 1/2 inch |
|---|---|
| Thread | 1/2 UNF |
| W | 0.652 inch |
| H | 0.5 inch |
| D | 1.312 inch |
| L1 | 2.125 inch |
| L2 | 1.187 inch |
| O | 0.7 inch |
| AF | 0.75 inch |
| Static load | 19545 N |
