SKU: FBL-06-MB

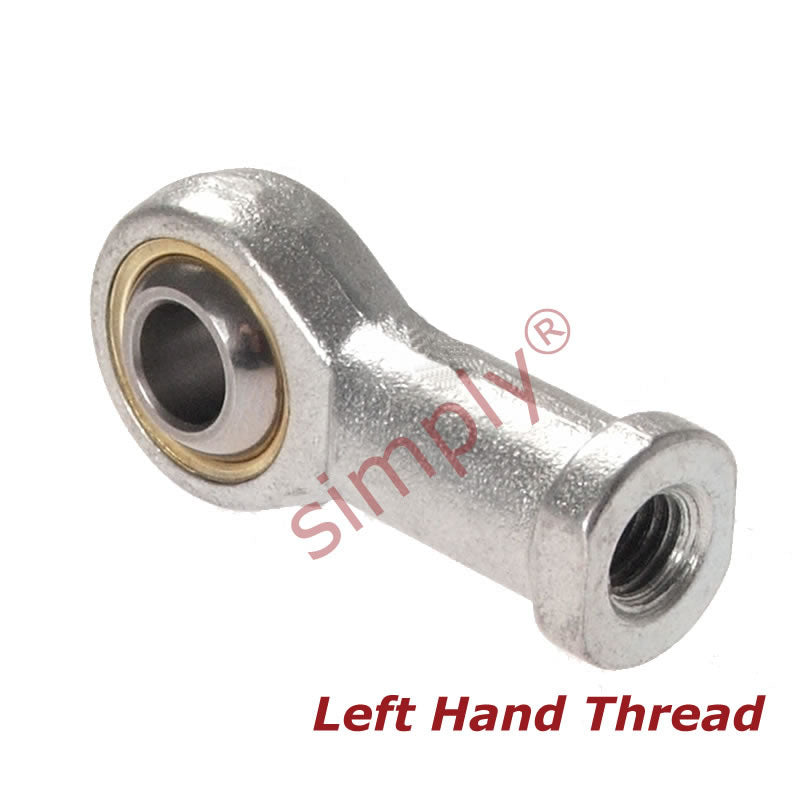

Branded FBL-06 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/8 UNF Thread - Allow 7-10 Days
Branded FBL-06 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/8 UNF Thread - Allow 7-10 Days
Regular price
$23.74
ex VAT
Regular price
Sale price
$23.74
ex VAT
In stock
Price Break
10+
$11.26
19+
$10.63
29+
$10.50
39+
$10.38
49+
$10.25
74+
$10.12
99+
$9.49
199+
$9.36
249+
$9.24
499+
$9.11
999+
$8.86
Quantity
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 3/8 UNF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 3/8 inch |
|---|---|
| Thread | 3/8 UNF |
| W | 0.5 inch |
| H | 0.406 inch |
| D | 1 inch |
| L1 | 1.625 inch |
| L2 | 0.932 inch |
| O | 0.516 inch |
| AF | 0.562 inch |
| Static load | 13640 N |
