SKU: FBL-05S-MB

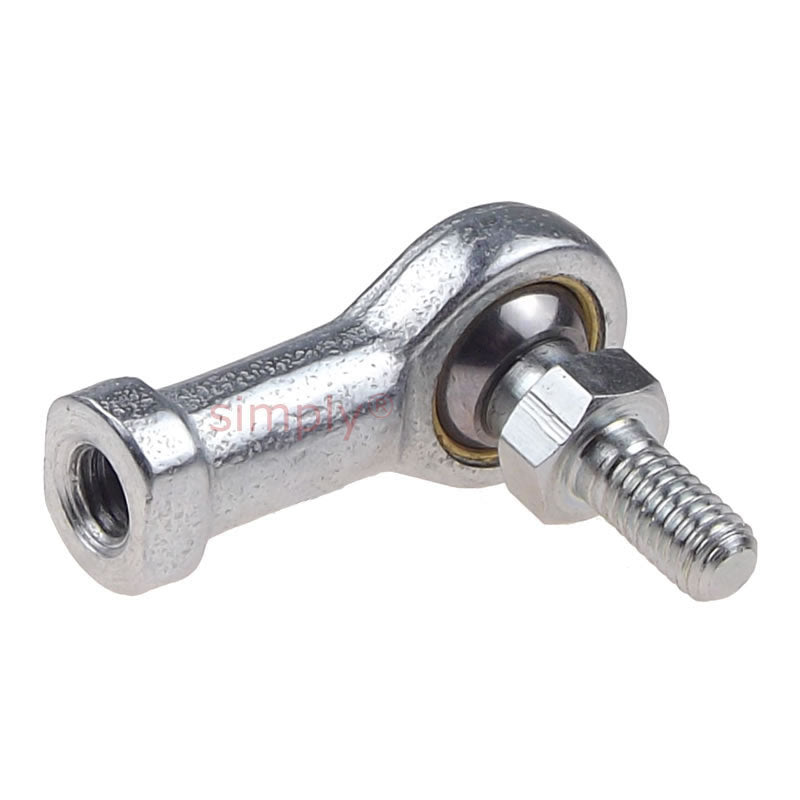

Branded FBL-05S Left Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 5/16 UNF Thread - Allow 7-10 Days
Branded FBL-05S Left Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 5/16 UNF Thread - Allow 7-10 Days
Regular price
$25.88
ex VAT
Regular price
Sale price
$25.88
ex VAT
In stock
Price Break
10+
$12.28
19+
$11.59
29+
$11.45
39+
$11.31
49+
$11.17
74+
$11.04
99+
$10.35
199+
$10.21
249+
$10.07
499+
$9.93
999+
$9.66
Quantity
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 5/16 UNF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical

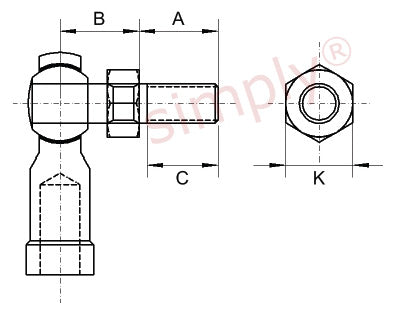

| Stud size | 5/16 UNF |
|---|---|
| Thread | 5/16 UNF |
| A | 0.687 inch |
| B | 0.547 inch |
| C | 0.594 inch |
| K | 0.437 inch |
| Static load | 3190 N |
