SKU: FB-M20-DUN

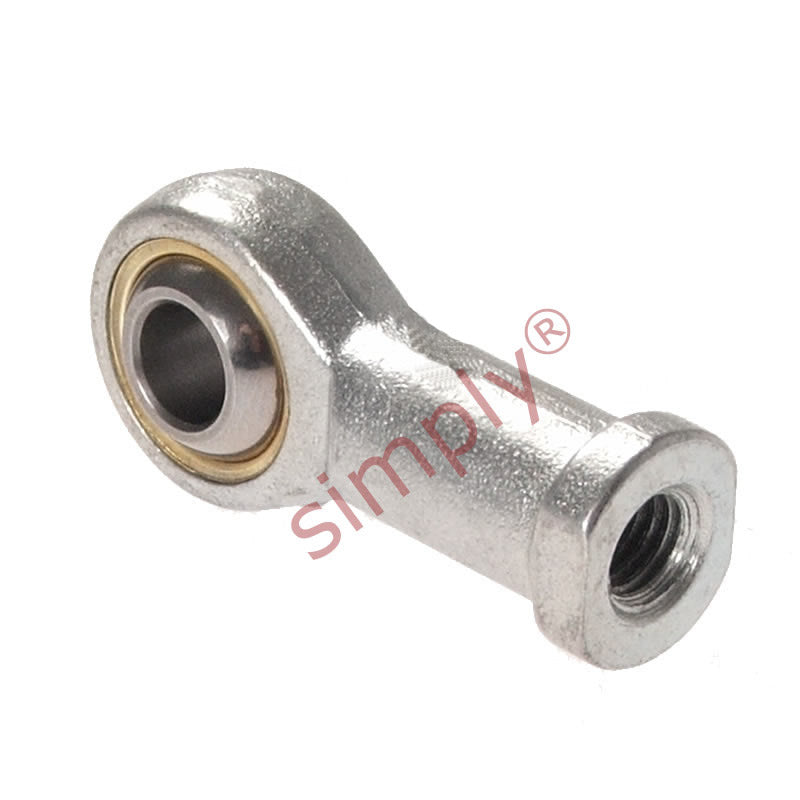

Dunlop FB-M20 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M20x2.5 Thread - Allow 7-10 Days
Dunlop FB-M20 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M20x2.5 Thread - Allow 7-10 Days
Regular price
$68.73
ex VAT
Regular price
Sale price
$68.73
ex VAT
Equivalent to: PHS20
In stock
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M20x2.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 20mm |
|---|---|
| Thread | M20x2.5 |
| W | 25mm |
| H | 18mm |
| D | 50mm |
| L1 | 77mm |
| L2 | 40mm |
| O | 24.5mm |
| AF | 30mm |
| Static load | 28640 N |
