SKU: FB-M16CG-MB

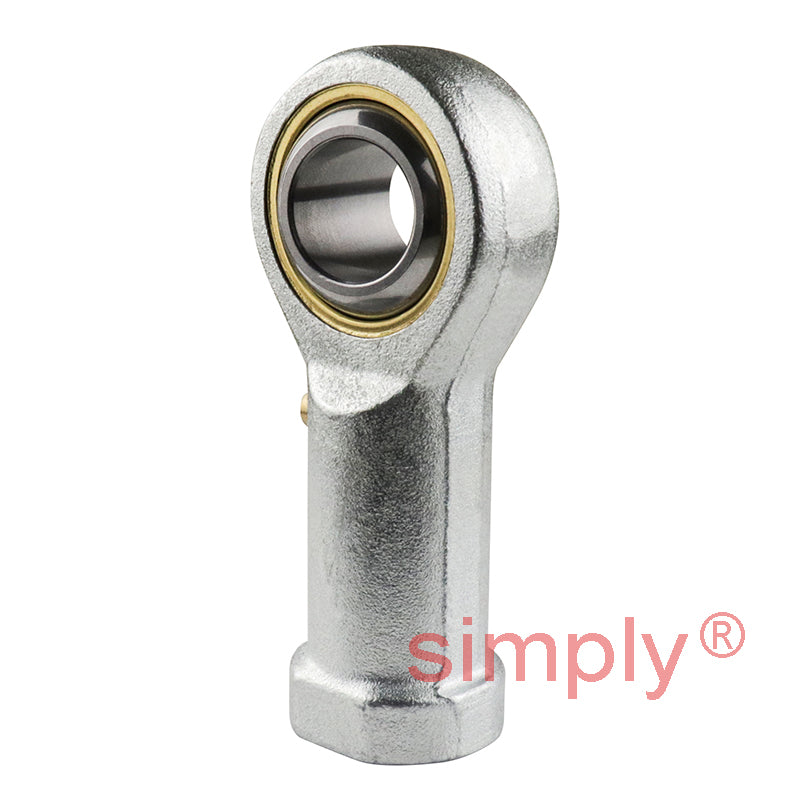

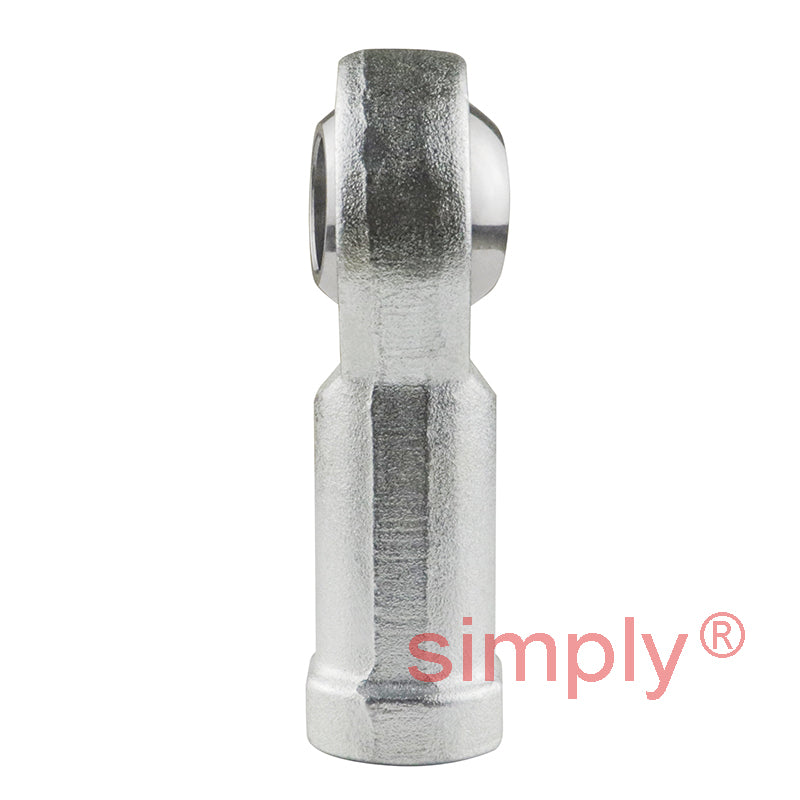

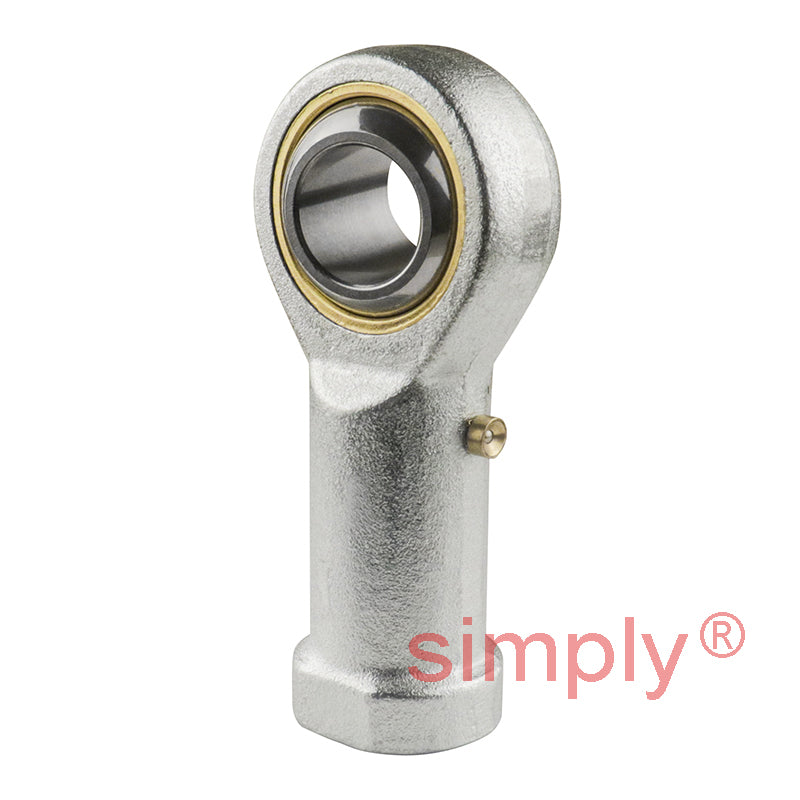

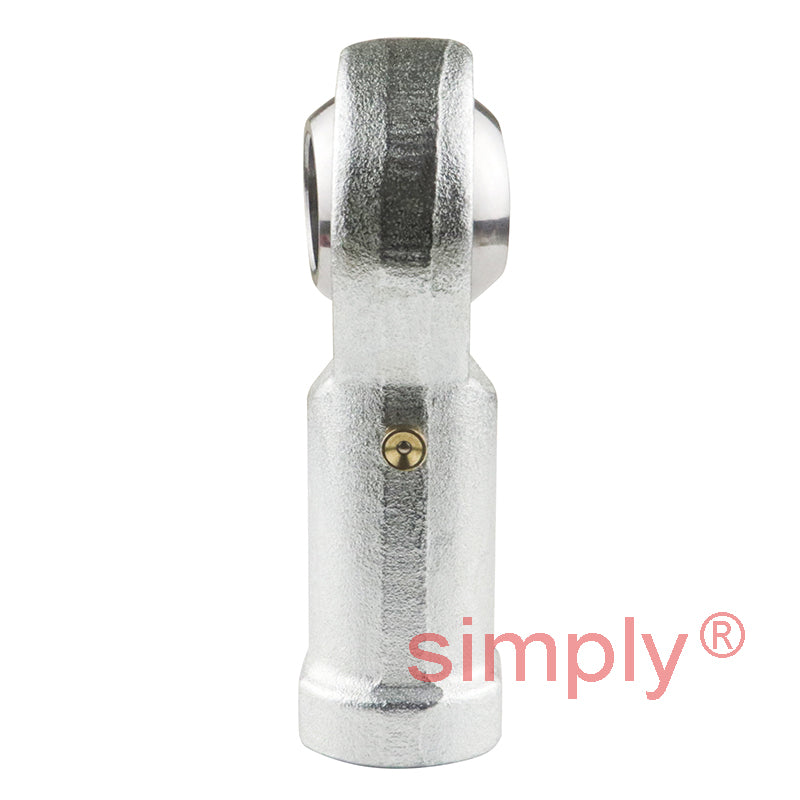

Branded FB-16CG Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.6 Thread
- Regular price
- $33.06 ex VAT
- Sale price
- $33.06
- Regular price
-
In stock
Quantity Price Breaks
10
$29.42
19
$27.77
29
$27.44
39
$27.11
49
$26.78
74
$26.45
99
$24.80
199
$24.46
249
$24.13
499
$23.80
999
$23.14
SKU:
FB-M16CG-MB
Branded FB-16CG Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.6 Thread
- Regular price
- $33.06 ex VAT
- Sale price
- $33.06
- Regular price
-
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Technical
| Bore size | = | 16mm |
| Thread | = | M16x1.6 |
| W | = | 21mm |
| H | = | 15mm |
| D | = | 42mm |
| L1 | = | 64mm |
| L2 | = | 28mm |
| O | = | 22mm |
| AF | = | 22mm |
| Static load | = | 0.675 N |
