SKU: FB-M12-SS-DUN

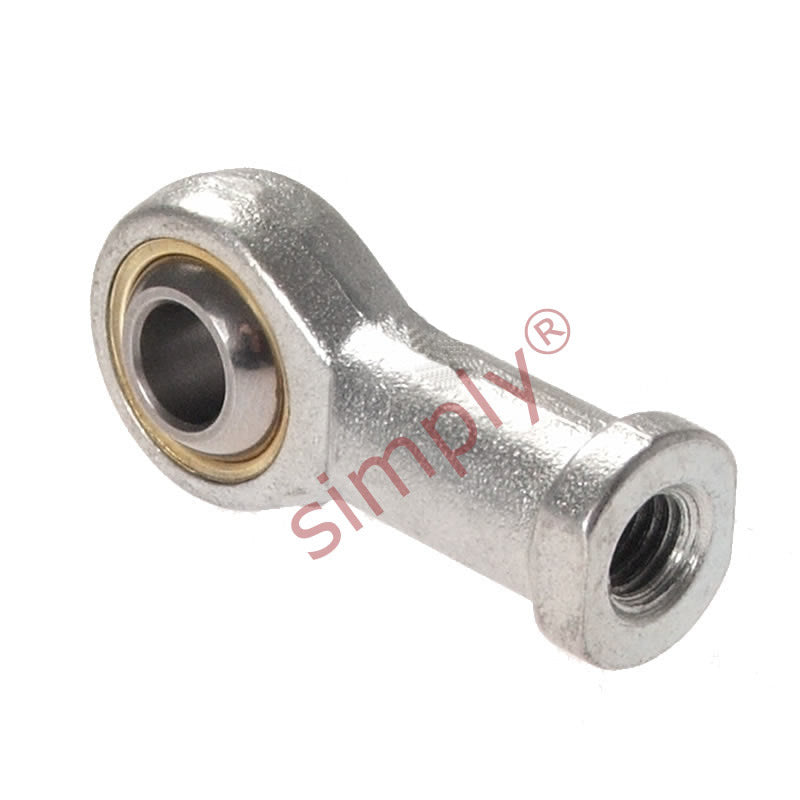

Dunlop FB-M12 Right Hand Metric Stainless Steel / Bronze Lined Maintenance Required Plain Female Rod End M12x1.75 Thread
Dunlop FB-M12 Right Hand Metric Stainless Steel / Bronze Lined Maintenance Required Plain Female Rod End M12x1.75 Thread
Regular price
$54.25
ex VAT
Regular price
Sale price
$54.25
ex VAT
In stock
Description
Description
|
FB Stainless Steel Series Maintenance Required Female Rod Ends: The stainless steel FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 12mm |
|---|---|
| Thread | M12x1.75 |
| W | 16mm |
| H | 12mm |
| D | 30mm |
| L1 | 50mm |
| L2 | 24mm |
| O | 15.4mm |
| AF | 19mm |
| Static load | 18745 N |
