SKU: FB-M08-DUN

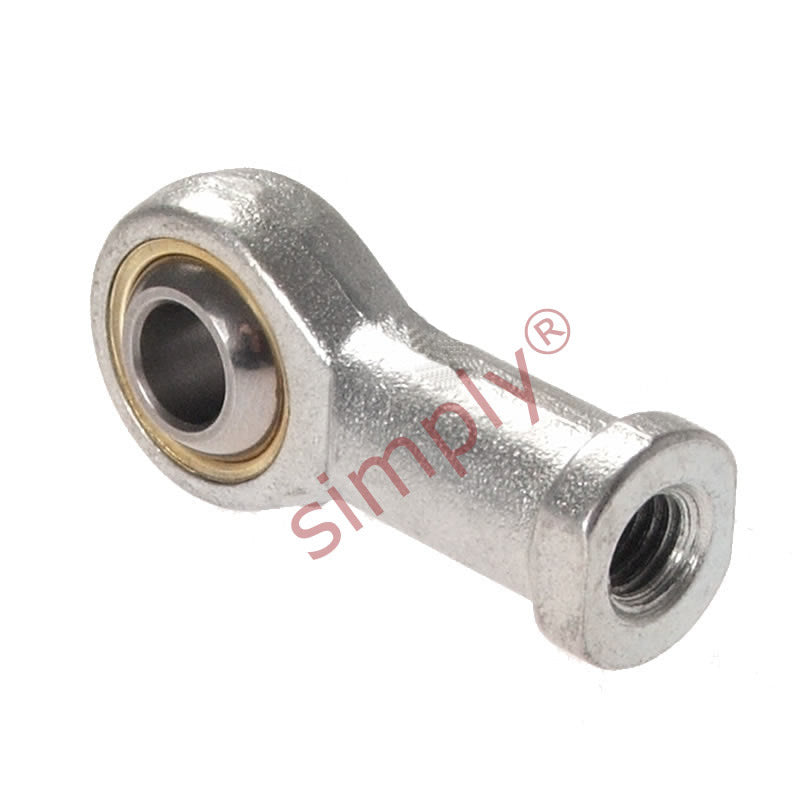

Dunlop FB-M08 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M8x1.25 Thread
Dunlop FB-M08 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M8x1.25 Thread
Regular price
$16.11
ex VAT
Regular price
Sale price
$16.11
ex VAT
Equivalent to: PHS8
In stock
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 8mm |
|---|---|
| Thread | M8x1.25 |
| W | 12mm |
| H | 9mm |
| D | 22mm |
| L1 | 36mm |
| L2 | 17mm |
| O | 10.4mm |
| AF | 14mm |
| Static load | 10450 N |
