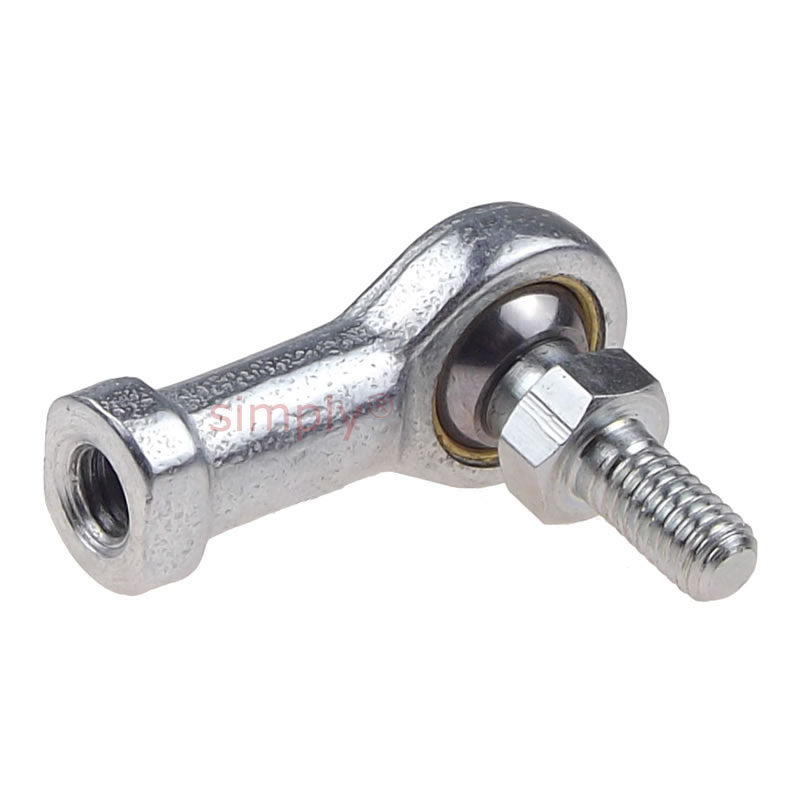

Branded FB-M05S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread

SKU: FB-M05S-MB

Branded FB-M05S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread

$20.08 ex VAT
$20.08
ex VAT
Equivalent to: PHS5+STUD
In stock

Quantity Price Breaks

10 $17.87
19 $16.87
29 $16.67
39 $16.47
49 $16.26
74 $16.06
99 $15.06
199 $14.86
249 $14.66
499 $14.46
999 $14.06
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded FB-M05S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread
SKU: FB-M05S-MB

Branded FB-M05S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread

$20.08 ex VAT
$20.08
ex VAT

Description

FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear).
Benefits: Low friction, extended wear life

Technical

Stud size = M5
Thread = M5x0.8
A = 10mm
B = 10mm
C = 8mm
K = 9mm
Static load = 1200 N
