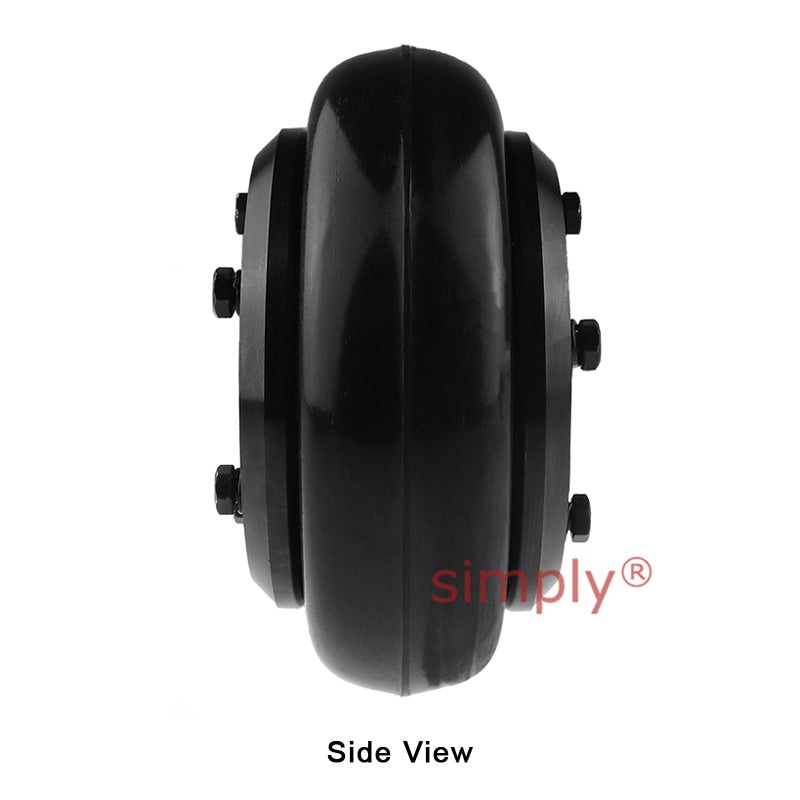

Major Branded F70H/F70B Outer Facing Taper Bore/Pilot Bored Tyre Drive Coupling Assembly with Fire Resistant Antistatic (F.R.A.S) Tyre

Branded Outer Tapered Locking Bush/Pilot Bore Tyre Drive Coupling Assembly with Fire Resistant Antistatic (F.R.A.S) Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

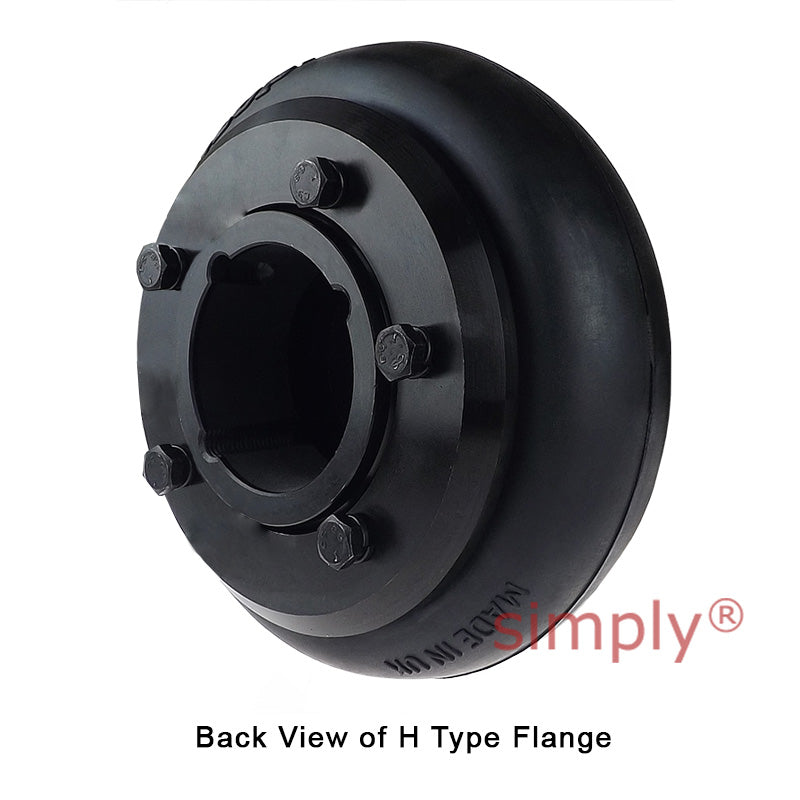

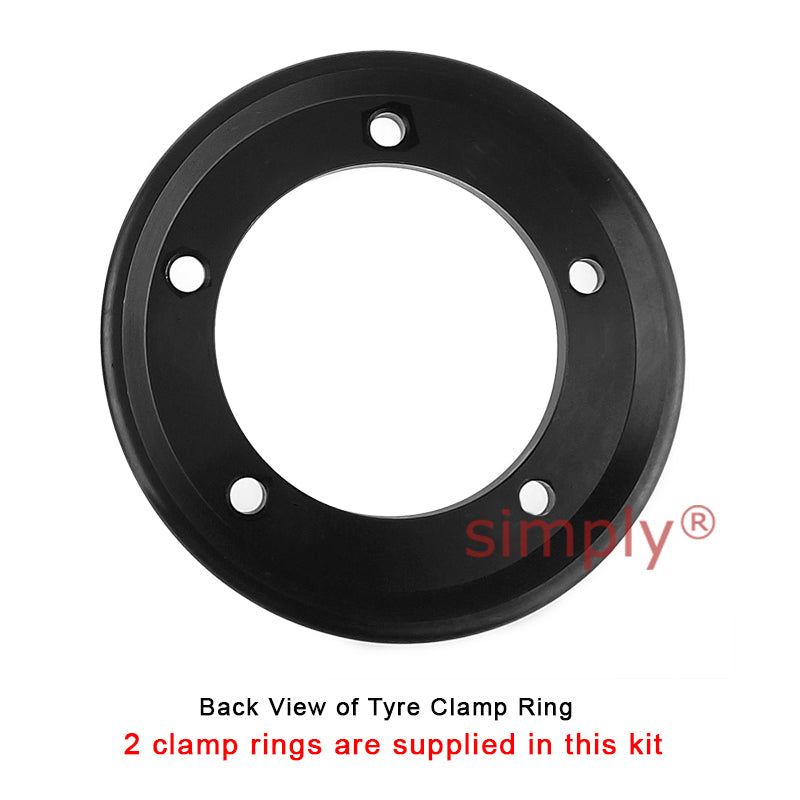

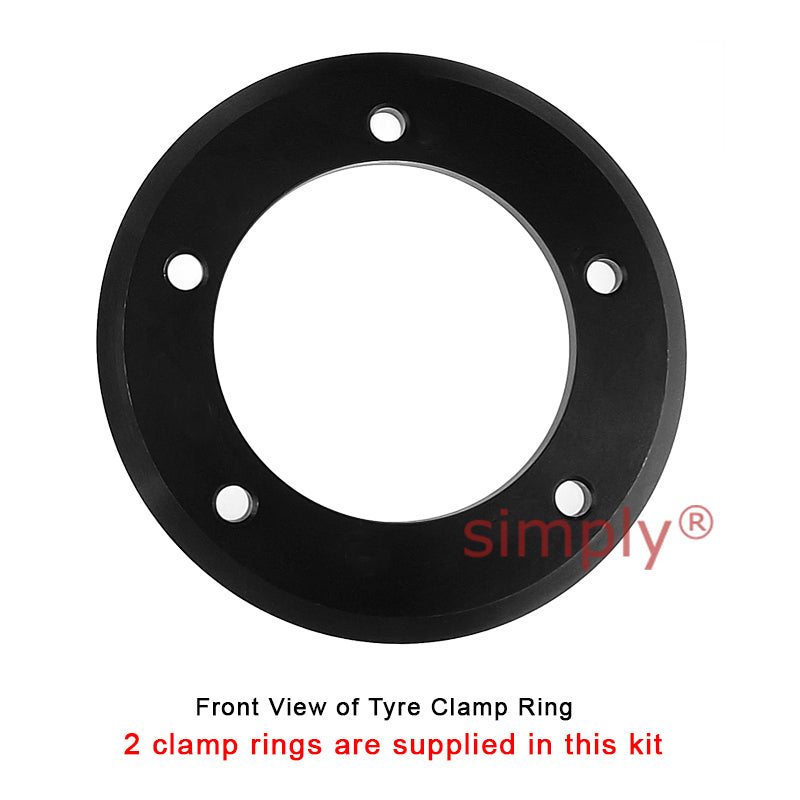

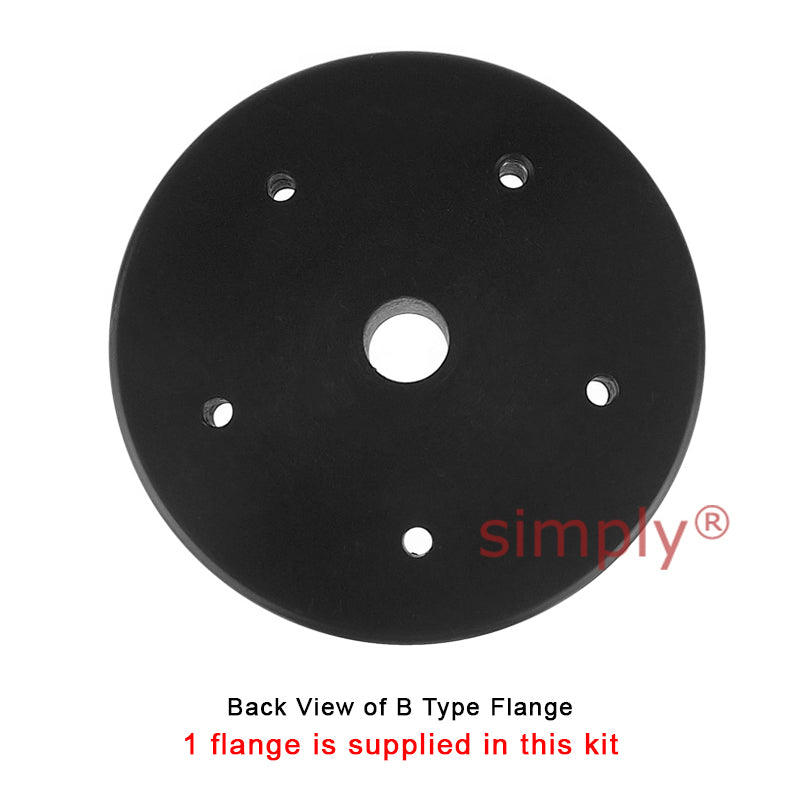

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 steel flanges and a matching chloroprene rubber fire resistance and anti-static properties (F.R.A.S) tyre element. This coupling assembly is the B type is supplied with a nominally sized pilot bore flange and the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.

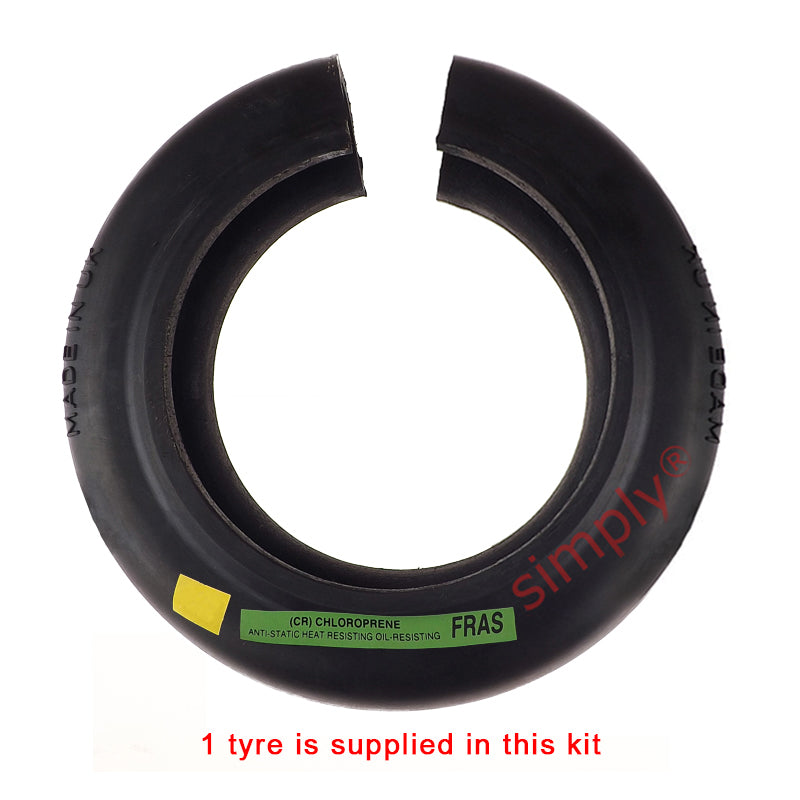

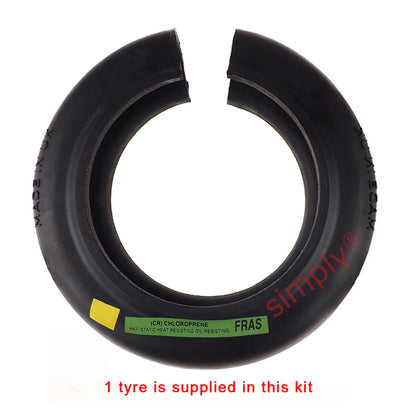

The chloroprene rubber compound is suitable for use in temperatures of -15 deg C to +70 deg C and has fire resistance and anti-static properties (F.R.A.S). If it doesn't say F.R.A.S it's not Fire Resistant Antistatic. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.

Brand / Quality:

Major Brand - High Quality

Max Bore:

42mm or 1-5/8 inch
