SKU: F40H+F40B+F40T-FRAS-MB
Major Branded F40H/F40B Outer Facing Taper Bore/Pilot Bored Tyre Drive Coupling Assembly with Fire Resistant Antistatic (F.R.A.S) Tyre
Equivalent to: F40H-1008 F40B F40T-FRAS
In stock
Price Break
Couldn't load pickup availability
Description
Branded Outer Tapered Locking Bush/Pilot Bore Tyre Drive Coupling Assembly with Fire Resistant Antistatic (F.R.A.S) Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

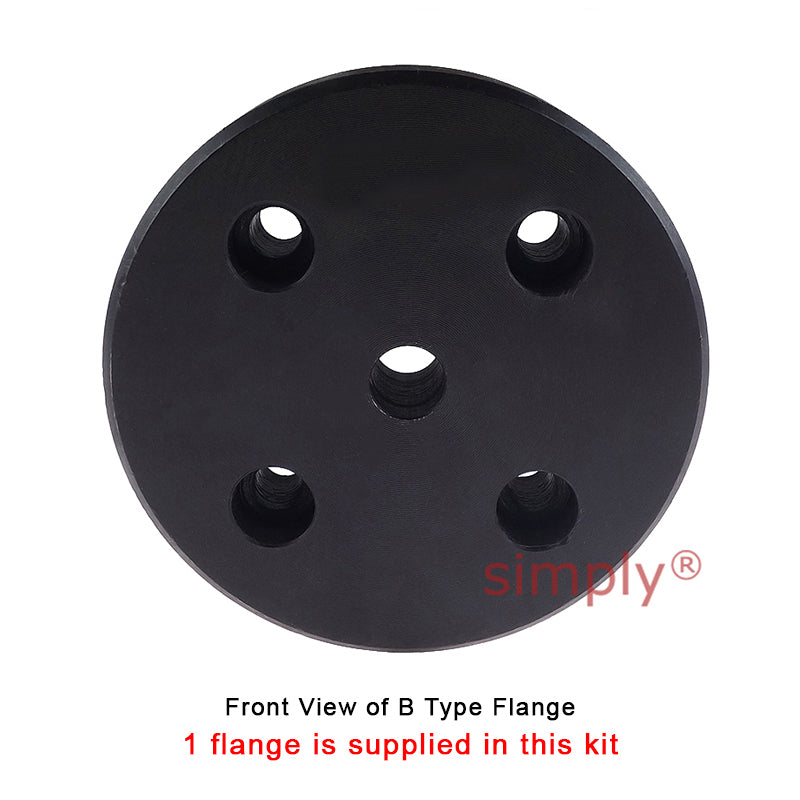

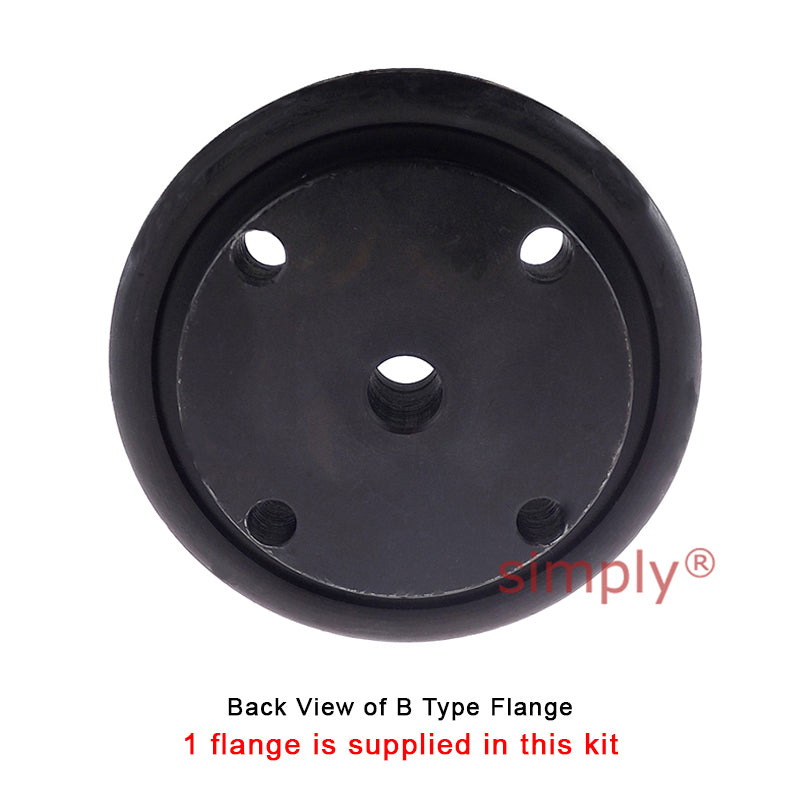

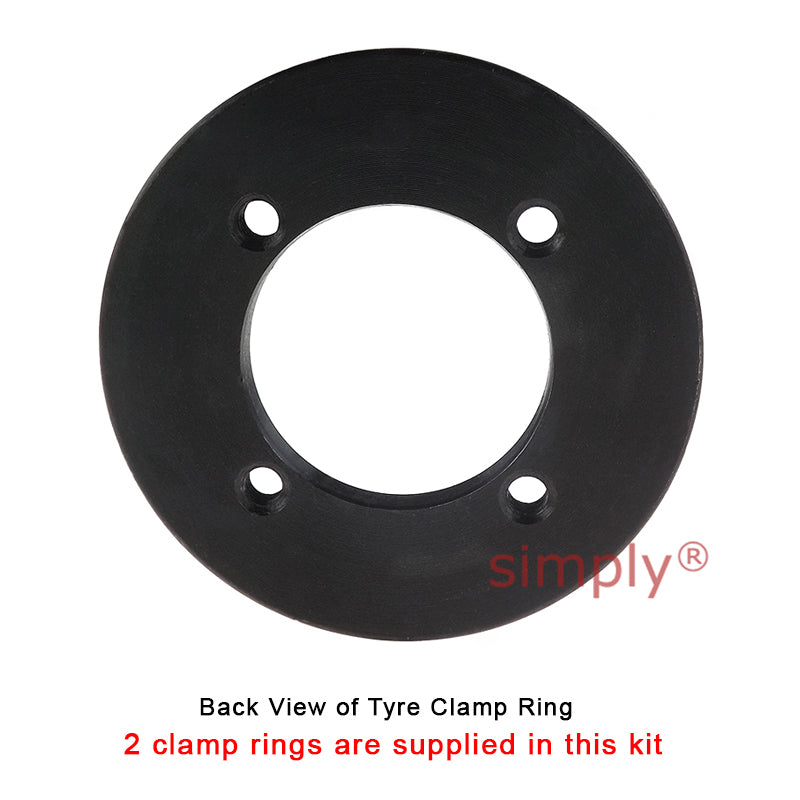

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 steel flanges and a matching chloroprene rubber fire resistance and anti-static properties (F.R.A.S) tyre element. This coupling assembly is the B type is supplied with a nominally sized pilot bore flange and the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.

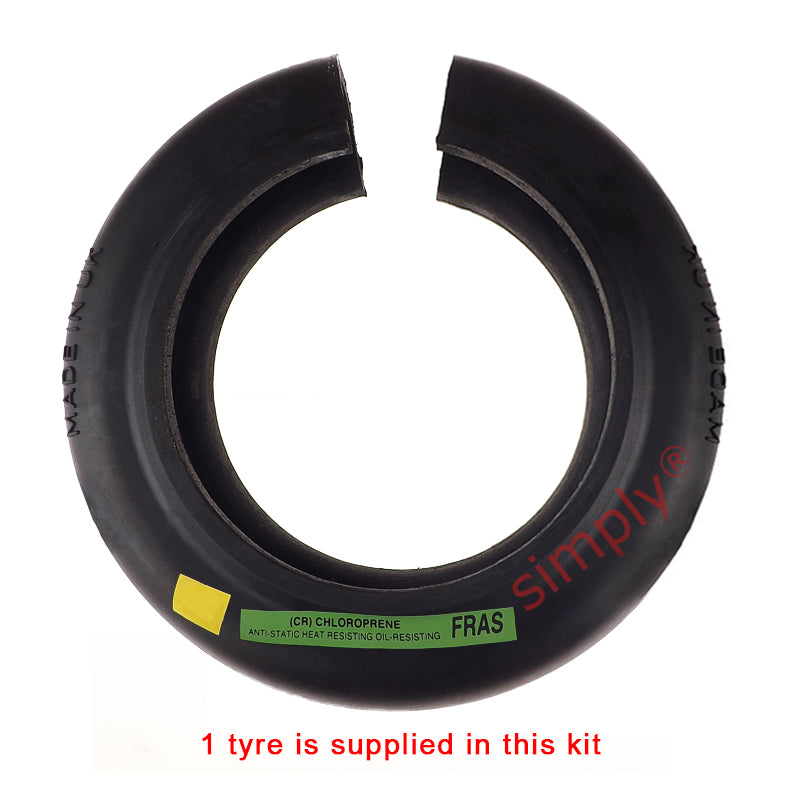

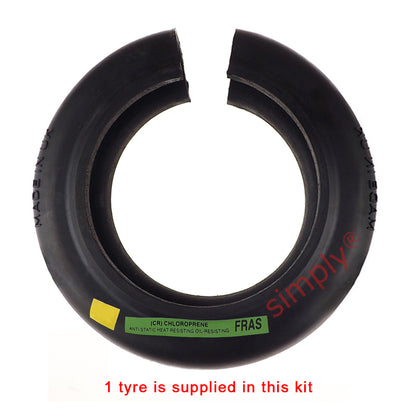

The chloroprene rubber compound is suitable for use in temperatures of -15 deg C to +70 deg C and has fire resistance and anti-static properties (F.R.A.S). If it doesn't say F.R.A.S it's not Fire Resistant Antistatic. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 25mm or 1 inch
Technical
| H Type - Bush | 1008 <a href="advanced_search_result.php?keywords=taper+lock+bush+1008">[Click Here]</a> |
|---|---|
| H Type - Max Bore | 25mm |
| H Type - Max Bore | 1 inch |
| H Type - Flange A | 104mm |
| H Type - Flange C | 82mm |
| H Type - Flange E | 11mm |
| H Type - Flange G | 29mm |
| H Type - Flange F | 33mm |
| H Type - Flange D | 22mm |
| H Type - Flange Weight | 0.87kg |
| H Type - Inertia | 0.00074kgm2 |
| H Type - Flange Face Spacing | 22mm |
| H Type - Gap Between Tyre Ends | 2mm |
| H Type - Nominal Torque | 24 Nm |
| H Type - Max Speed | 4500 rev/min |
| H Type - Max Par Mis | 1.1mm |
| H Type - Max End Float | 1.3mm |
| H Type - Screw Size | M6 |
| H Type - Tigtening Torque | 15 Nm |
| B Type - Max Bore | 32mm |
| B Type - Flange A | 104mm |
| B Type - Flange C | 82mm |
| B Type - Flange E | 11mm |
| B Type - Flange G | 29mm |
| B Type - Flange F | 33mm |
| B Type - Flange D | 22mm |
| B Type - Clamping Screws | M5 |
| B Type - Flange Weight | 1.61kg |
| B Type - Inertia | 0.00074kgm2 |
| B Type - Flange Face Spacing | 22mm |
| B Type - Gap Between Tyre Ends | 2mm |
| B Type - Nominal Torque | 24 Nm |
| B Type - Max Speed | 4500 rev/min |
| B Type - Max Par Mis | 1.1mm |
| B Type - Max End Float | 1.3mm |
| B Type - Screw Size | M6 |
| B Type - Tigtening Torque | 15 Nm |
| Max Power at 100 rpm | 0.25 kW |
| Max Power at 200 rpm | 0.5 kW |
| Max Power at 300 rpm | 0.75 kW |
| Max Power at 400 rpm | 1.01 kW |
| Max Power at 500 rpm | 1.26 kW |
| Max Power at 600 rpm | 1.51 kW |
| Max Power at 700 rpm | 1.76 kW |
| Max Power at 720 rpm | 1.81 kW |
| Max Power at 800 rpm | 2.01 kW |
| Max Power at 900 rpm | 2.26 kW |
| Max Power at 960 rpm | 2.41 kW |
| Max Power at 1000 rpm | 2.51 kW |
| Max Power at 1200 rpm | 3.02 kW |
| Max Power at 1400 rpm | 3.52 kW |
| Max Power at 1440 rpm | 3.62 kW |
| Max Power at 1600 rpm | 4.02 kW |
| Max Power at 1800 rpm | 4.52 kW |
| Max Power at 2000 rpm | 5.03 kW |
| Max Power at 2200 rpm | 5.53 kW |
| Max Power at 2400 rpm | 6.03 kW |
| Max Power at 2600 rpm | 6.53 kW |
| Maximum Speed | 4500 rev/min |
| Nominal Torque | 24 Nm TKN |
| Maximum Torque | 64 Nm TK MAX |
| Torsional Stiffness | 5 Nm/° |
| Max. Parallel Misalignment | 1.1mm |
| Maximum End Float | 1.3mm ± |
| Approximate Mass | 0.1kg |
| Alternating Torque | 11 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
