• SNR EXT208 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
1 1

SKU: EXT208-SNR

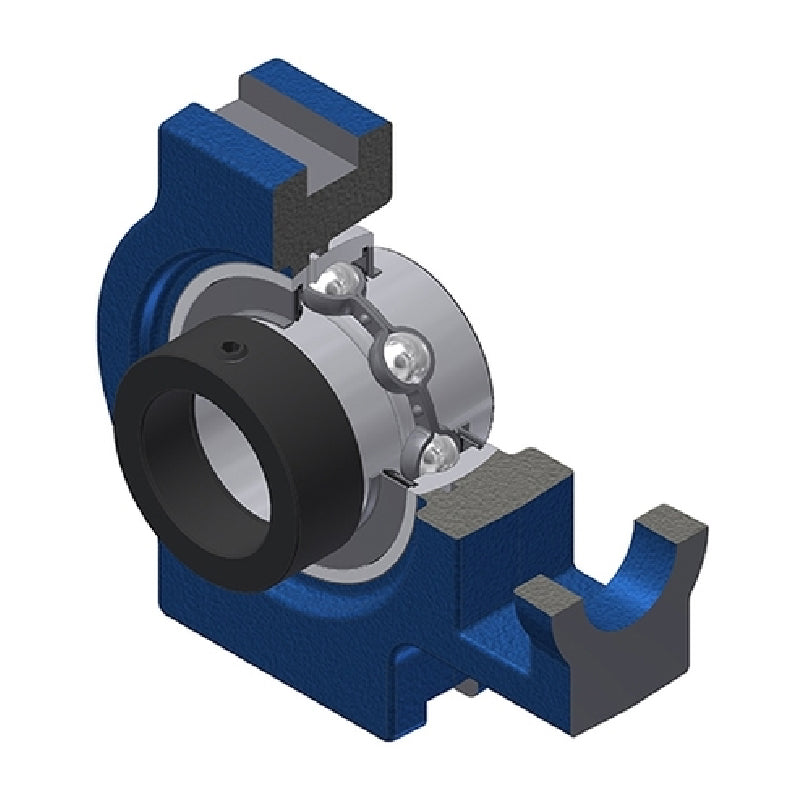

SNR EXT208 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days

SNR EXT208 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
$83.22 ex VAT
$83.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
4+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
99+ $35.47
499+ $33.25
999+ $32.81
1999+ $32.37
2999+ $31.92
4999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
6PG16FZ2HG
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
EXT
Technical
--- Dimensions
Shaft diameter d 40mm
A 49mm
A1 16mm
A2 33mm
B1 56.3mm
d1 58mm
H 114mm
H1 102mm
H2 83mm
L 144mm
L1 88mm
L2 16mm
L3 83mm
N 29mm
N1 19mm
N2 49mm
S 21.4mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.48 kg
