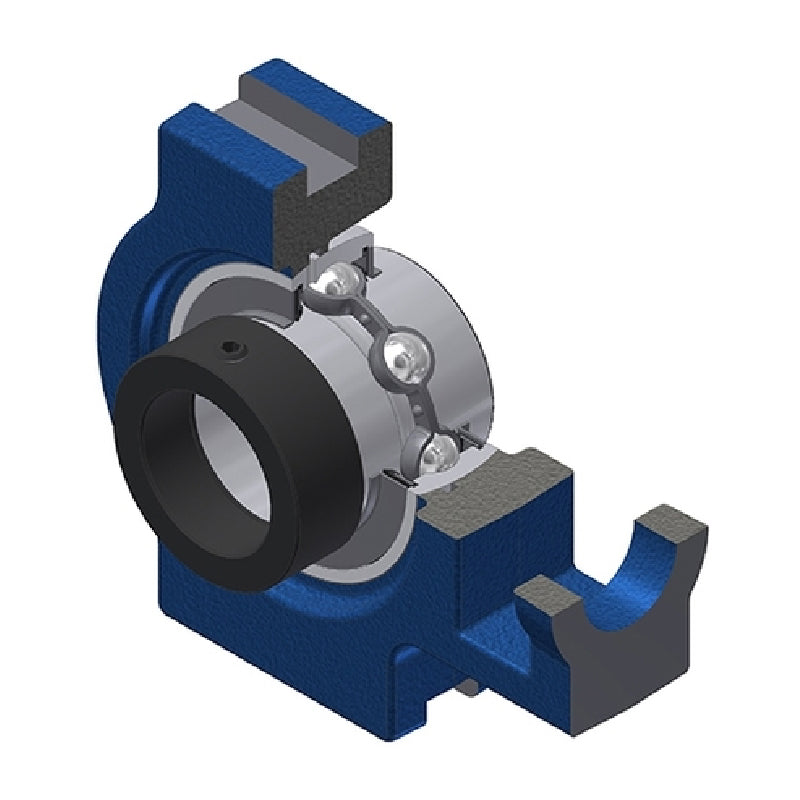

• SNR EXT206 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
1 1

SKU: EXT206-SNR

SNR EXT206 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days

SNR EXT206 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
$68.75 ex VAT
$68.75 ex VAT
Sale Sold out

In stock

Price Break
3+ $32.60
4+ $30.77
9+ $30.40
19+ $30.04
49+ $29.67
99+ $29.30
499+ $27.47
999+ $27.10
1999+ $26.74
2999+ $26.37
4999+ $25.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
6PG16FZ2HG
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
EXT
Technical

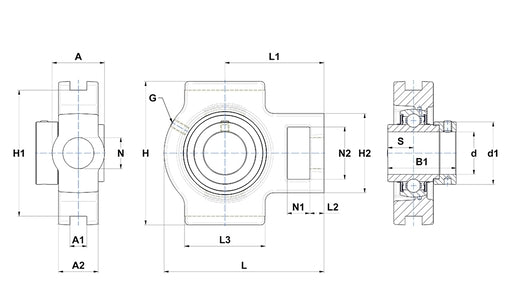

--- Dimensions
Shaft diameter d 30mm
A 37mm
A1 12mm
A2 28mm
B1 48.3mm
d1 44.1mm
H 102mm
H1 89mm
H2 56mm
L 113mm
L1 70mm
L2 10mm
L3 57mm
N 22mm
N1 16mm
N2 37mm
S 18.2mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.31 kg
