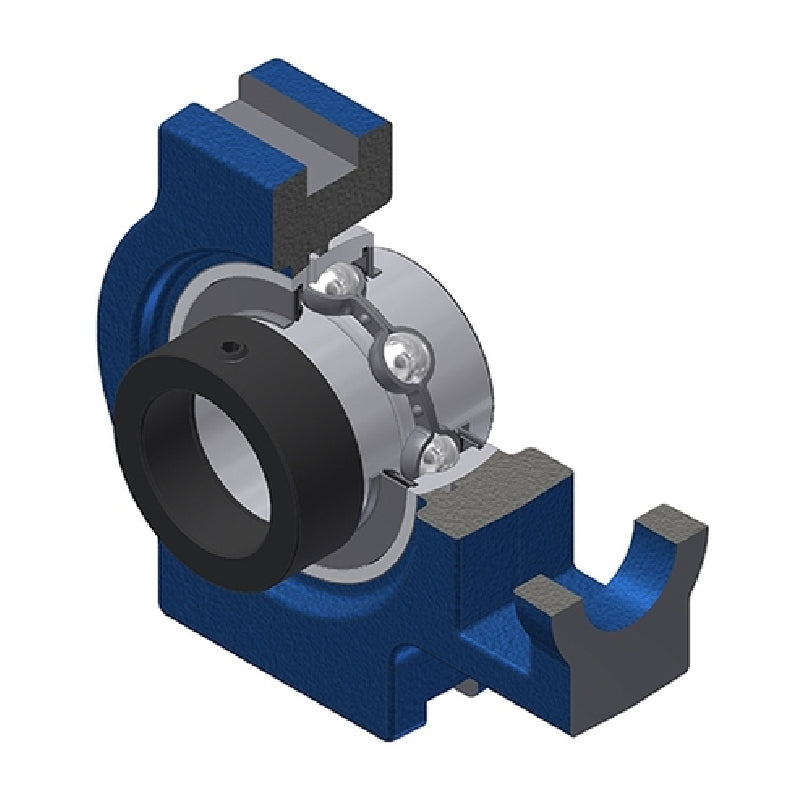

• SNR EXT205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
1 1

SKU: EXT205-SNR

SNR EXT205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days

SNR EXT205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
$57.30 ex VAT
$57.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
4+ $25.64
9+ $25.34
19+ $25.03
49+ $24.73
99+ $24.42
499+ $22.90
999+ $22.59
1999+ $22.29
2999+ $21.98
4999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
6PG16FZ2HG
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXT
Technical
--- Dimensions
Shaft diameter d 25mm
A 32mm
A1 12mm
A2 24mm
B1 44.3mm
d1 37.4mm
H 89mm
H1 76mm
H2 51mm
L 97mm
L1 62mm
L2 10mm
L3 51mm
N 19mm
N1 16mm
N2 32mm
S 17.4mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 0.85 kg
