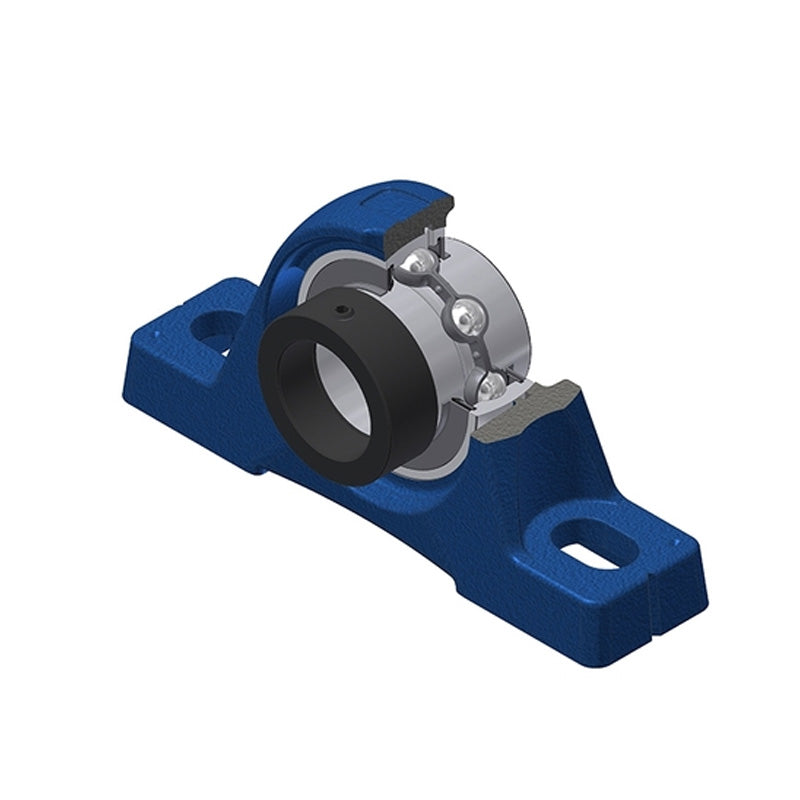

• SNR EXPE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXPE208-SNR

SNR EXPE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
$72.37 ex VAT
$72.37 ex VAT
Sale Sold out

In stock

Price Break
3+ $34.31
4+ $32.39
9+ $32.00
19+ $31.62
49+ $31.23
99+ $30.84
499+ $28.92
999+ $28.53
1999+ $28.15
2999+ $27.76
4999+ $26.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
3O5D679ERX
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
EXPE
Bolt Hole Centres:
138mm
Technical
--- Dimensions
Shaft diameter 40mm
A 48mm
A1 30mm
B 42.8mm
d1 58mm
H 49.2mm
H1 19mm
H2 99mm
J 138mm
L 179mm
L1 53mm
N 14mm
N1 26mm
S 21.4mm
G R1/8
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.98 kg
