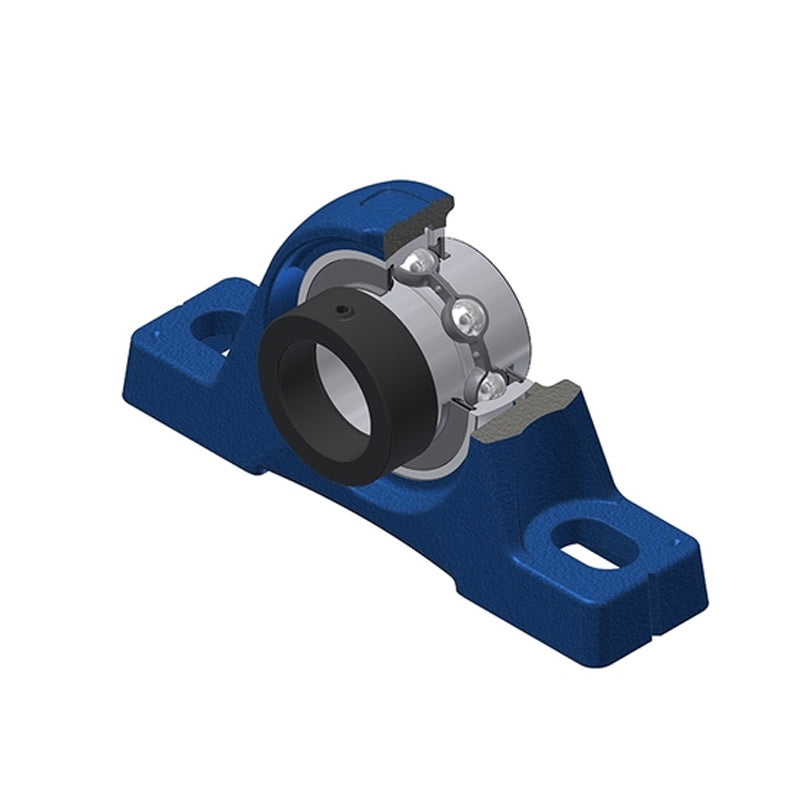

• SNR EXPE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXPE205-SNR

SNR EXPE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
$48.23 ex VAT
$48.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $22.88
4+ $21.59
9+ $21.33
19+ $21.08
49+ $20.82
99+ $20.56
499+ $19.28
999+ $19.02
1999+ $18.76
2999+ $18.51
4999+ $17.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
3O5D679ERX
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXPE
Bolt Hole Centres:
103mm
Technical

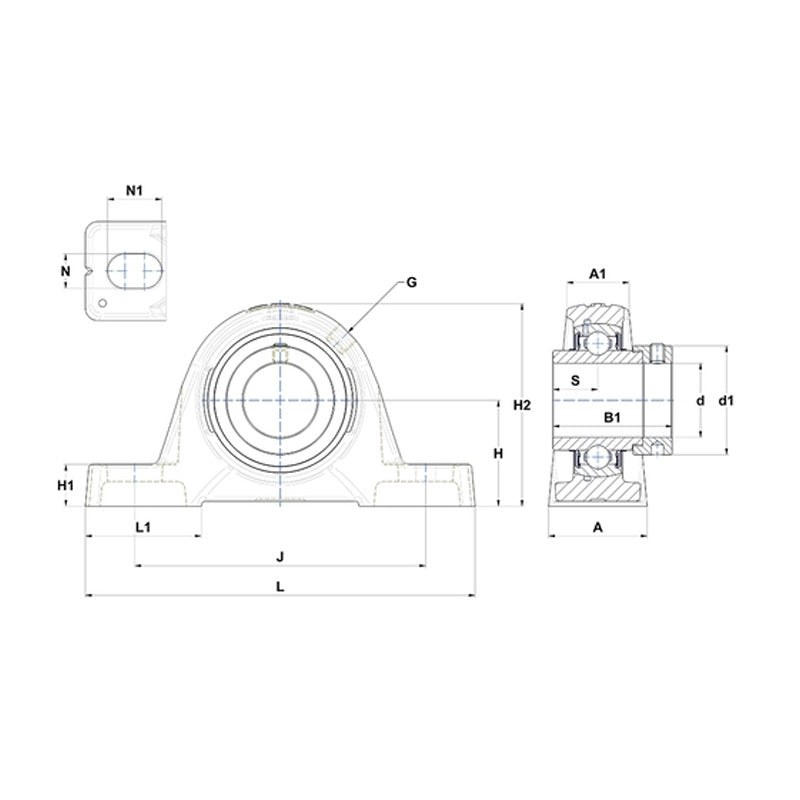

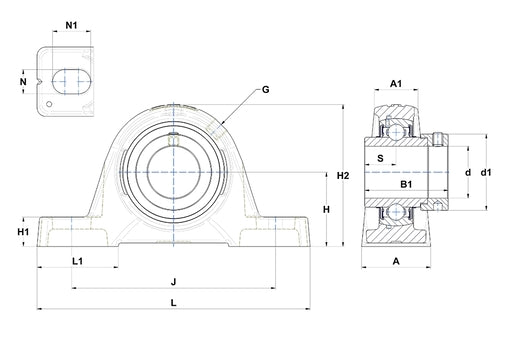

--- Dimensions
Shaft diameter 25mm
A 36mm
A1 21mm
B 34.8mm
d1 37.4mm
H 36.5mm
H1 14.5mm
H2 70mm
J 103mm
L 130mm
L1 39mm
N 11mm
N1 19mm
S 17.4mm
G R1/8
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.75 kg
