SKU: EXPAE211-SNR

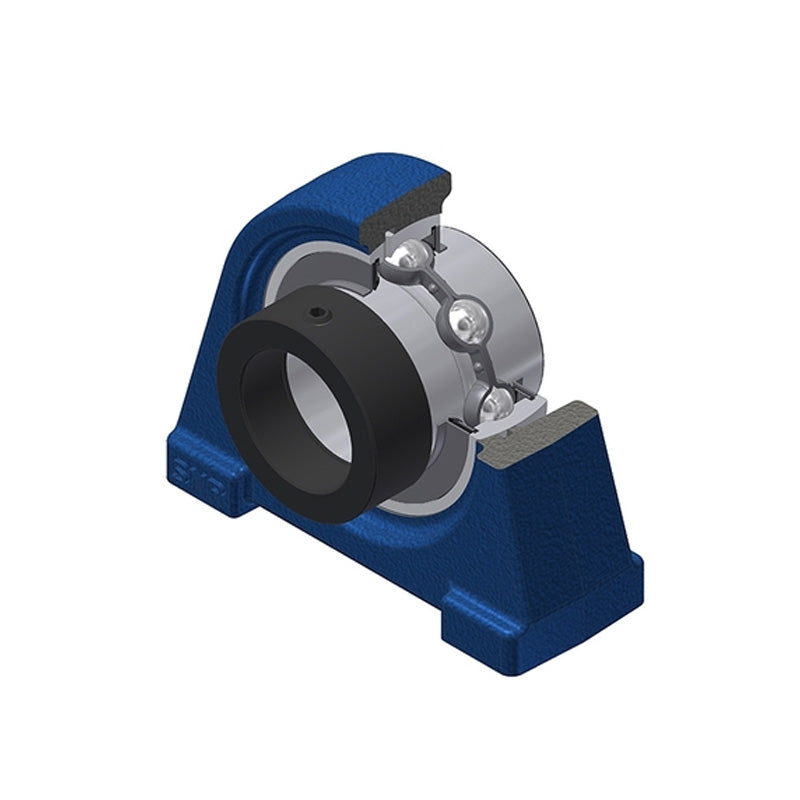

SNR EXPAE211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days

SNR EXPAE211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
$122.71 ex VAT
$122.71 ex VAT
Sale Sold out

In stock

Price Break
3+ $58.19
4+ $54.92
9+ $54.27
19+ $53.61
49+ $52.96
99+ $52.31
499+ $49.04
999+ $48.38
1999+ $47.73
2999+ $47.08
4999+ $45.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5XKJU1KT2C
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
EXPAE
Bolt Hole Centres:
118mm
Technical

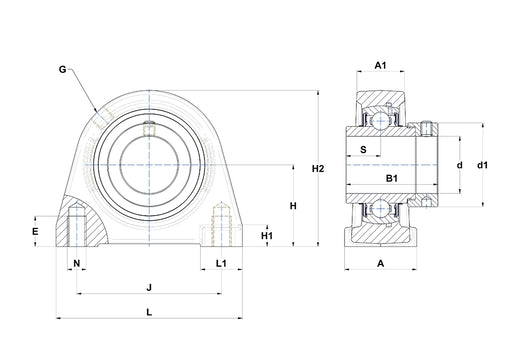

--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 55.4mm
d1 74.5mm
E 20mm
H 64mm
H1 16mm
H2 125mm
J 118mm
L 150mm
L1 32mm
N M16
S 27.7mm
G R1/8
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 3.39 kg
