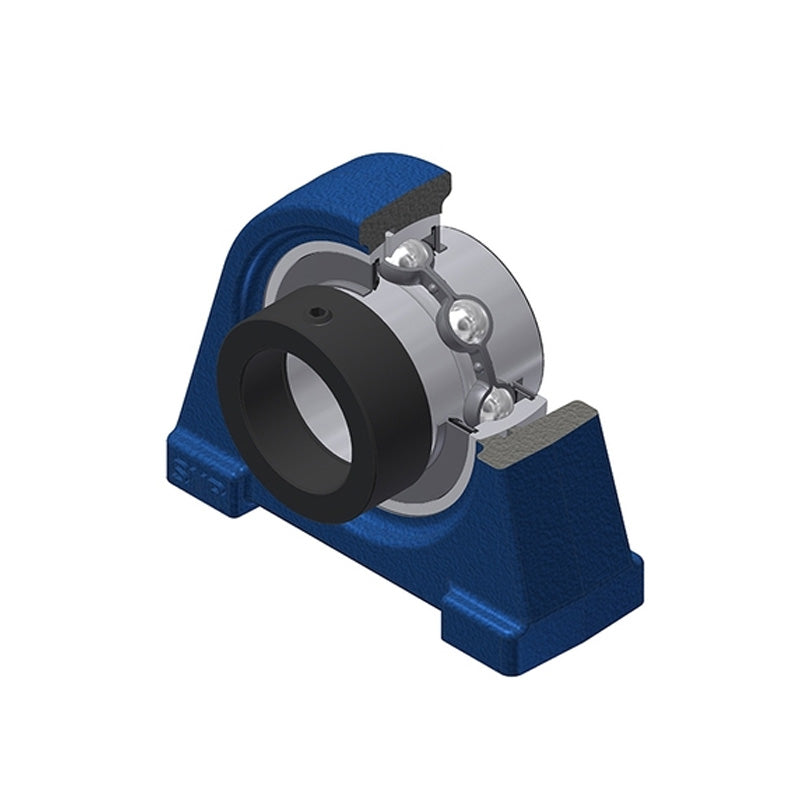

• SNR EXPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
1 1

SKU: EXPAE208-SNR

SNR EXPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days

SNR EXPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
$83.22 ex VAT
$83.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
4+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
99+ $35.47
499+ $33.25
999+ $32.81
1999+ $32.37
2999+ $31.92
4999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5XKJU1KT2C
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
EXPAE
Bolt Hole Centres:
88.9mm
Technical
--- Dimensions
Shaft diameter 40mm
A 47mm
A1 30mm
B 42.8mm
d1 58mm
E 15mm
H 49.2mm
H1 13mm
H2 99mm
J 88.9mm
L 116mm
L1 27mm
N M12
S 21.4mm
G R1/8
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.78 kg
