• SNR EXFE216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFE216-SNR

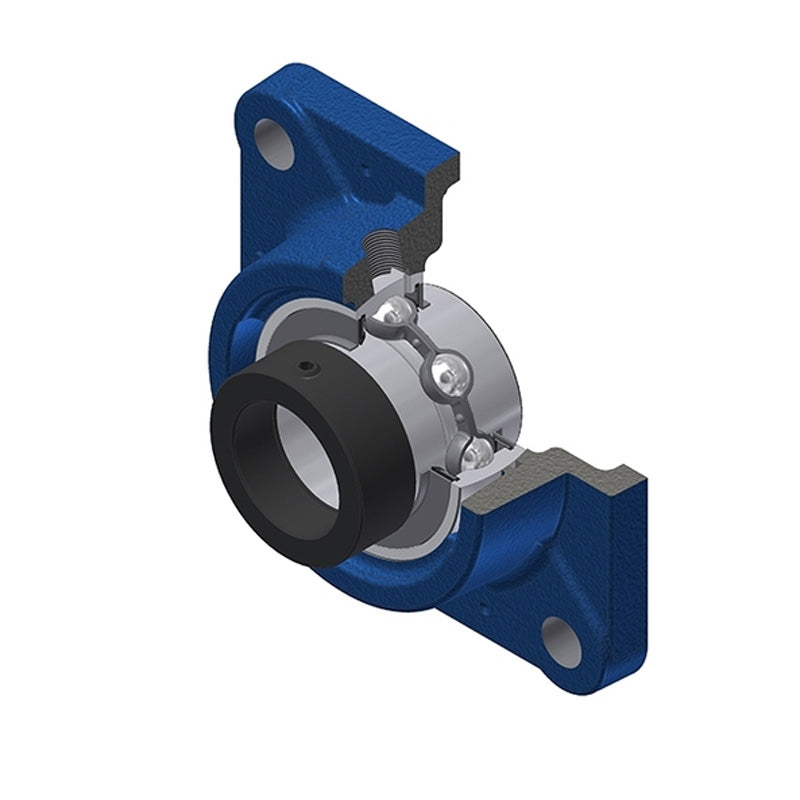

SNR EXFE216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Eccentric Collar Insert - Allow 2-3 Days
$289.45 ex VAT
$289.45 ex VAT
Sale Sold out

In stock

Price Break
3+ $137.26
4+ $129.55
9+ $128.01
19+ $126.46
49+ $124.92
99+ $123.38
499+ $115.67
999+ $114.13
1999+ $112.58
2999+ $111.04
4999+ $107.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
H7DNO3QCDC
Brand / Quality:
SNR - High Quality
Inside Diameter:
80mm
Style:
EXFE
Bolt Hole Centres:
153mm
Technical
--- Dimensions
Shaft diameter 80mm
A 61mm
A1 20mm
A2 99.2mm
B 74.6mm
B1 95.2mm
d1 110mm
e 41.3mm
J 153mm
L 197mm
N 23mm
S 37.3mm
G R1/8″
--- Load rating
Dynamic load C 72.5 kN
Static load C0 54.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 7.37 kg
