• SNR EXFE209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFE209-SNR

SNR EXFE209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
$83.22 ex VAT
$83.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
4+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
99+ $35.47
499+ $33.25
999+ $32.81
1999+ $32.37
2999+ $31.92
4999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
H7DNO3QCDC
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
EXFE
Bolt Hole Centres:
105mm
Technical

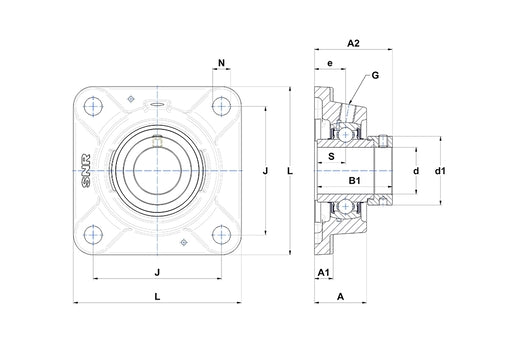

--- Dimensions
Shaft diameter 45mm
A 40mm
A1 13mm
A2 58.9mm
B 42.8mm
B1 56.3mm
d1 62mm
e 24mm
J 105mm
L 137mm
N 14mm
S 21.4mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.41 kg
