SKU: EXFCE209-SNR

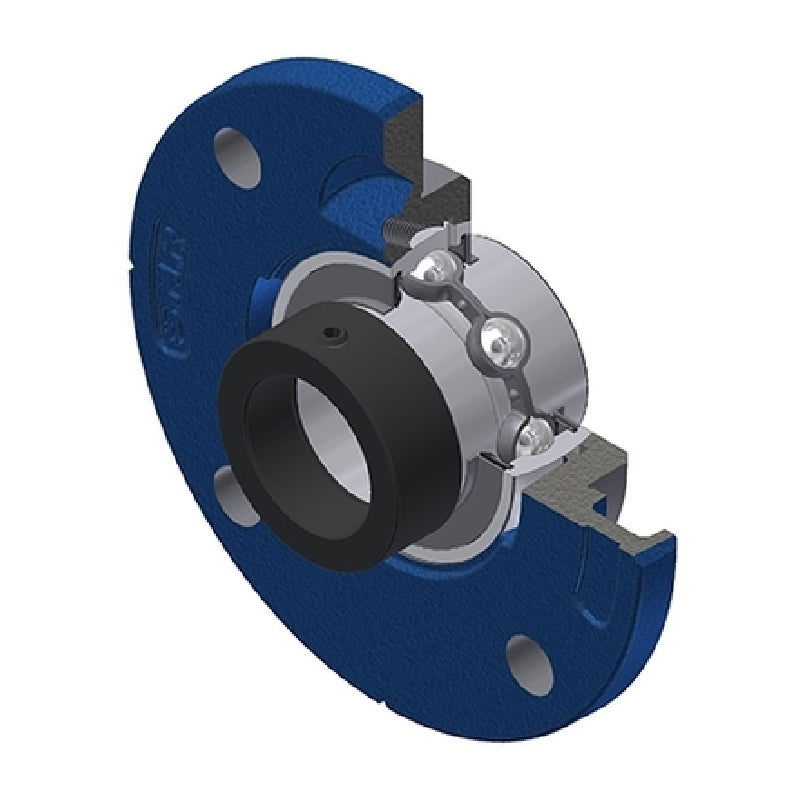

SNR EXFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$94.07
ex VAT
Regular price
Sale price
$94.07
ex VAT
In stock
Price Break
3+
$44.61
4+
$42.10
9+
$41.60
19+
$41.10
49+
$40.60
99+
$40.10
499+
$37.59
999+
$37.09
1999+
$36.59
2999+
$36.09
4999+
$35.09
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- EXFCE
- Pitch Circle Diameter:
- 130mm
Technical
Technical

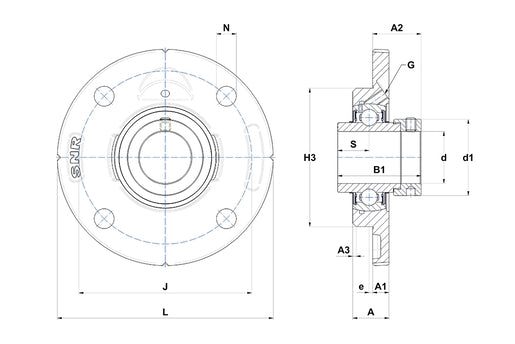

| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 25mm |
| A1 | 12mm |
| A2 | 32.9mm |
| A3 | 2mm |
| B | 42.8mm |
| B1 | 56.3mm |
| d1 | 62mm |
| e | -2mm |
| H3 | 105mm |
| J | 130mm |
| L | 155mm |
| N | 14mm |
| S | 21.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.05 kg |
