• SNR EST210 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
1 1

SKU: EST210-SNR

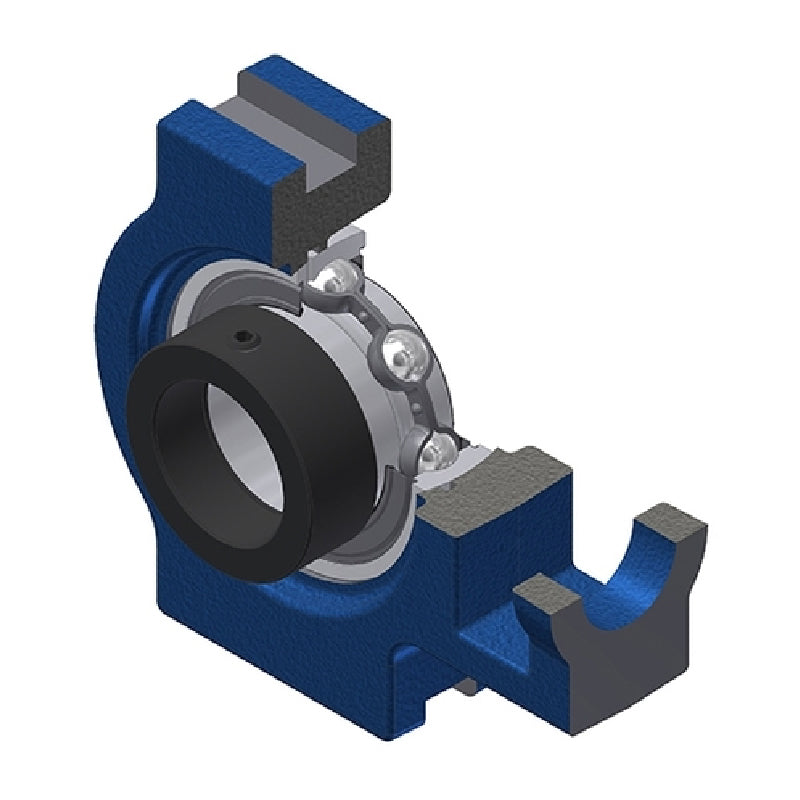

SNR EST210 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days

SNR EST210 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
$104.93 ex VAT
$104.93 ex VAT
Sale Sold out

In stock

Price Break
3+ $49.76
4+ $46.96
9+ $46.40
19+ $45.84
49+ $45.28
99+ $44.73
499+ $41.93
999+ $41.37
1999+ $40.81
2999+ $40.25
4999+ $39.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5YMLVLDPTC
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EST
Technical
--- Dimensions
Shaft diameter d 50mm
A 49mm
A1 16mm
A2 37mm
B1 43.7mm
d1 67.2mm
H 117mm
H1 102mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 29mm
N1 19mm
N2 49mm
S 11mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.5 kg
