• SNR ESPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
  • SNR ESPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
1 2

SKU: ESPG207-SNR

SNR ESPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days

SNR ESPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
$64.94 ex VAT
$64.94 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.79
4+ $29.06
9+ $28.72
19+ $28.37
49+ $28.02
99+ $27.68
499+ $25.95
999+ $25.60
1999+ $25.26
2999+ $24.91
4999+ $24.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
3IWCP9C01M
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
ESPG
Bolt Hole Centres:
68mm
Technical

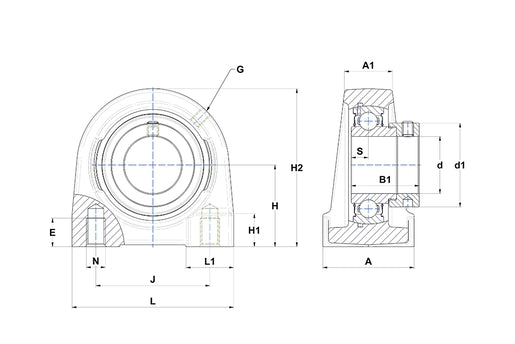

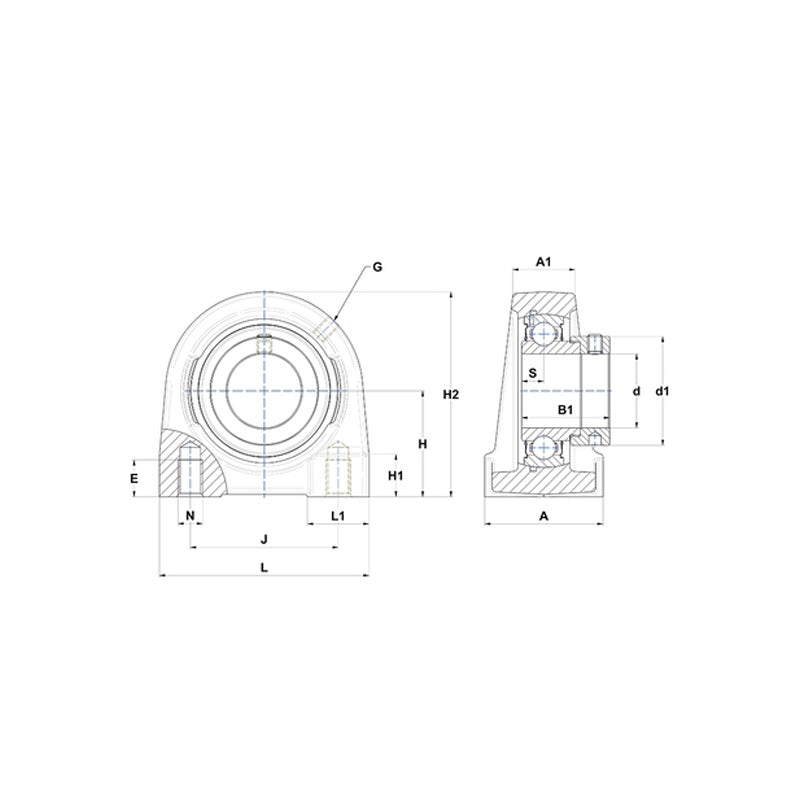

--- Dimensions
Shaft diameter 35mm
A 48mm
A1 27mm
B 25.4mm
d1 51.1mm
E 22mm
H 47.6mm
H1 20mm
H2 93mm
J 68mm
L 100mm
L1 35mm
N M12
S 9.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.6 kg
