• SNR ESPFL205 Metric Two Bolt Oval Pressed Steel Bearing Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPFL205-SNR

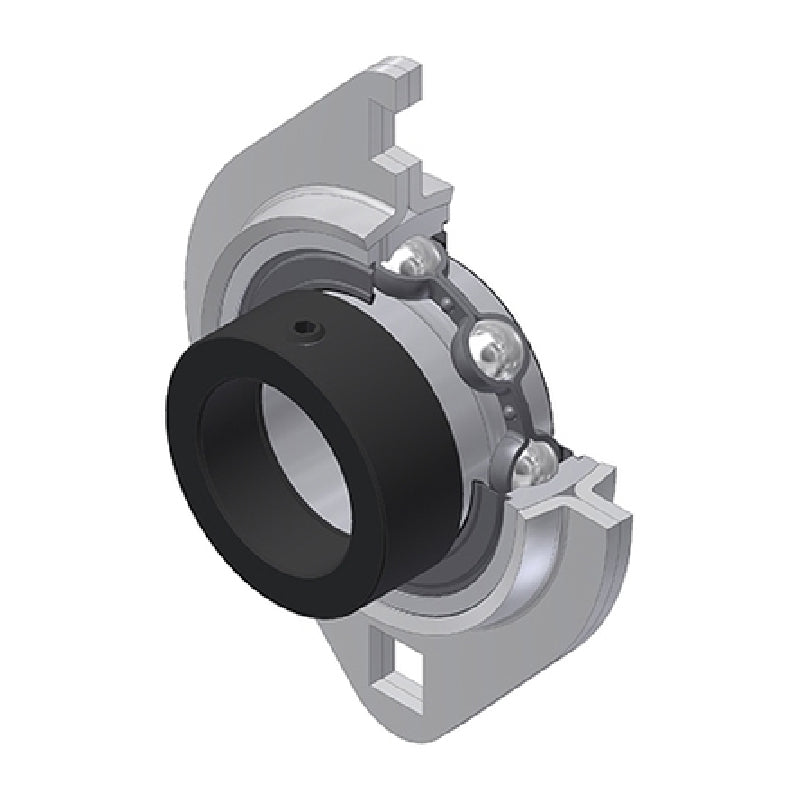

SNR ESPFL205 Metric Two Bolt Oval Pressed Steel Bearing Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPFL205 Metric Two Bolt Oval Pressed Steel Bearing Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
$36.99 ex VAT
$36.99 ex VAT
Sale Sold out

In stock

Price Break
3+ $17.54
4+ $16.55
9+ $16.36
19+ $16.16
49+ $15.96
99+ $15.77
499+ $14.78
999+ $14.58
1999+ $14.39
2999+ $14.19
4999+ $13.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SBH2BO_DESC
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
ESPFL
Bolt Hole Centres:
4mm
Technical

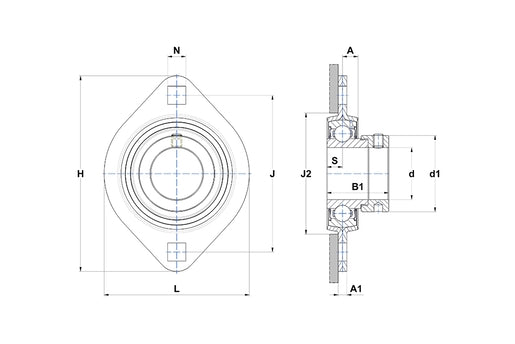

--- Dimensions
Shaft diameter d 25mm
A 8.7mm
A1 4mm
A2 23.4mm
B 21.4mm
B1 30.9mm
d1 37.4mm
H 95.2mm
J 76.2mm
L 71mm
N 8.7mm
S 7.5mm
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.29 kg
