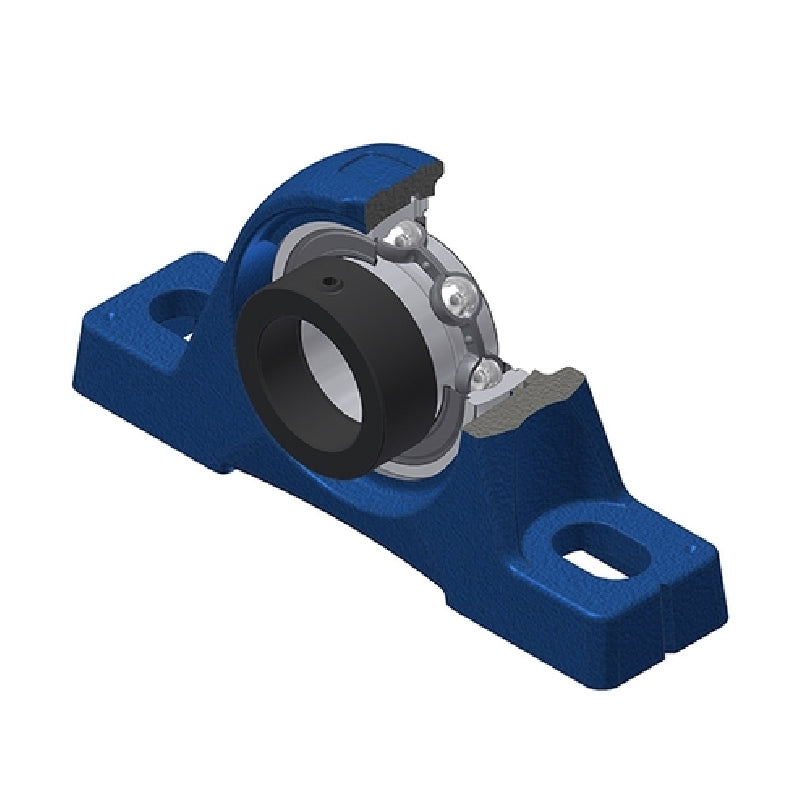

• SNR ESPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPE211-SNR

SNR ESPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
$99.51 ex VAT
$99.51 ex VAT
Sale Sold out

In stock

Price Break
3+ $47.19
4+ $44.54
9+ $44.01
19+ $43.48
49+ $42.95
99+ $42.42
499+ $39.76
999+ $39.23
1999+ $38.70
2999+ $38.17
4999+ $37.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CKLDFUFNDM
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
ESPE
Bolt Hole Centres:
176mm
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 32.5mm
d1 74.5mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 12mm
G R1/8"
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.17 kg
