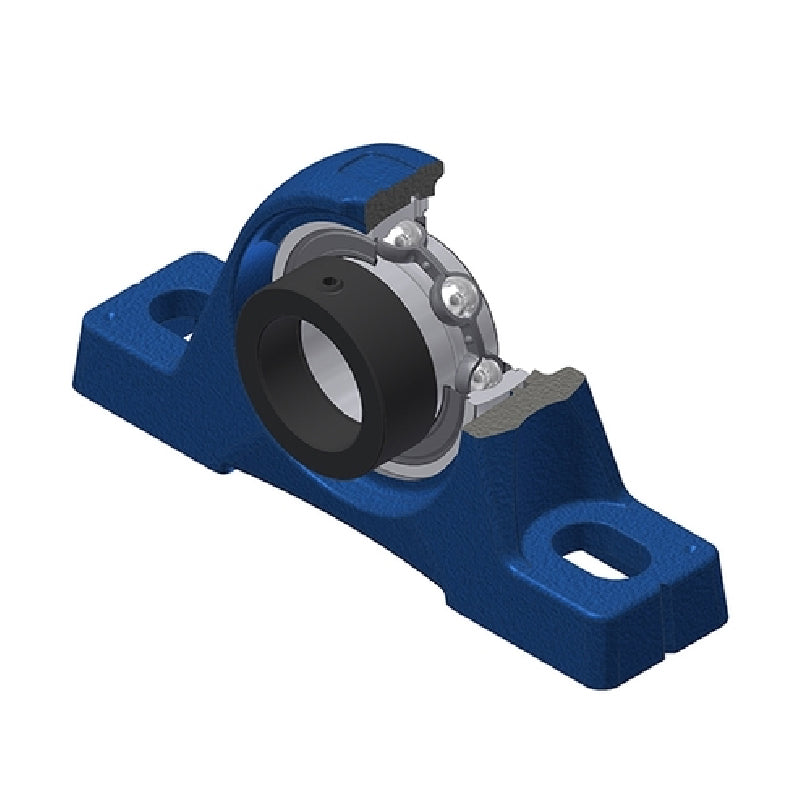

• SNR ESPE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPE210-SNR

SNR ESPE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
$83.22 ex VAT
$83.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
4+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
99+ $35.47
499+ $33.25
999+ $32.81
1999+ $32.37
2999+ $31.92
4999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CKLDFUFNDM
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESPE
Bolt Hole Centres:
158mm
Technical

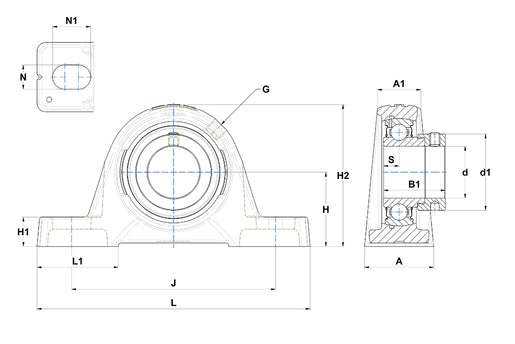

--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 30.2mm
d1 67.2mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 11mm
G R1/8"
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.6 kg
