SKU: ESPA212-SNR

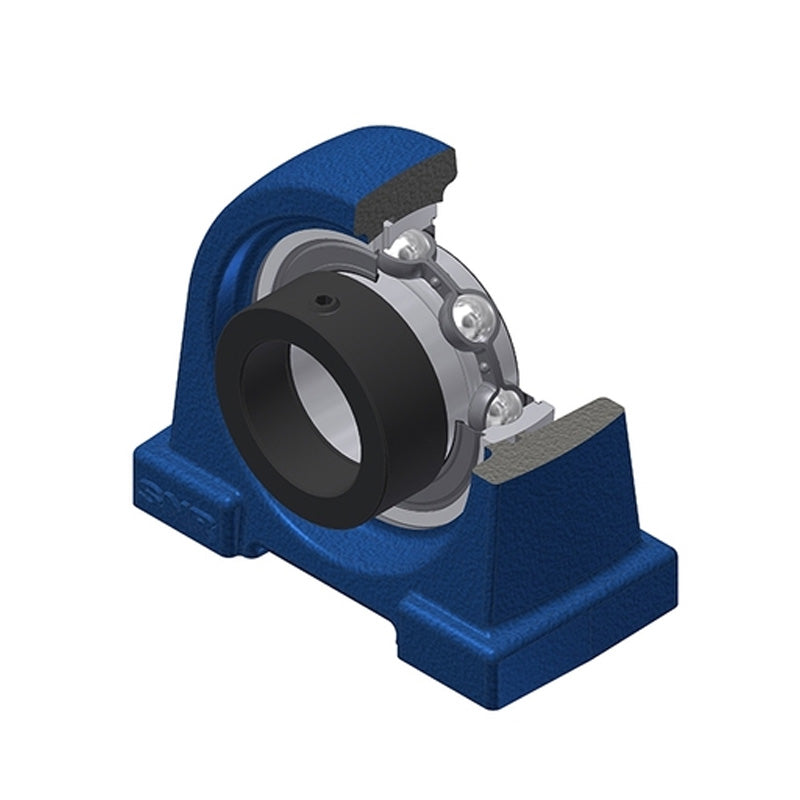

SNR ESPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days

SNR ESPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
$137.08 ex VAT
$137.08 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.01
4+ $61.36
9+ $60.63
19+ $59.89
49+ $59.16
99+ $58.43
499+ $54.78
999+ $54.05
1999+ $53.32
2999+ $52.59
4999+ $51.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
45EX3SUC3Q
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
ESPA
Bolt Hole Centres:
114mm
Technical

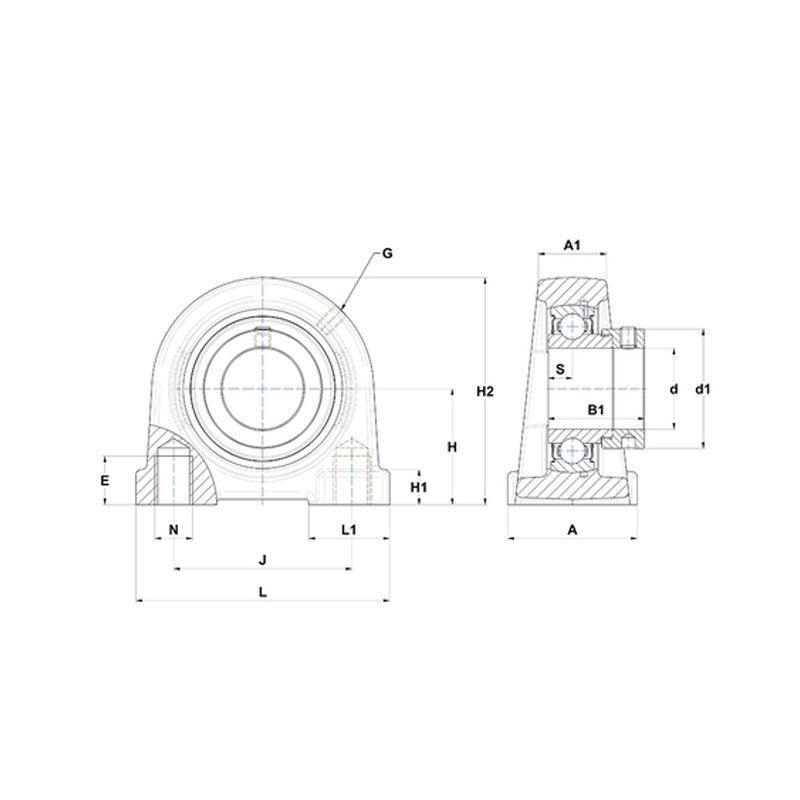

--- Dimensions
Shaft diameter 60mm
A 68mm
A1 36mm
B 33.4mm
d1 82mm
E 25mm
H 69.9mm
H1 15mm
H2 138mm
J 114mm
L 150mm
L1 52mm
N M16
S 12mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 3.9 kg
