• SNR ESFLE201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFLE201-SNR

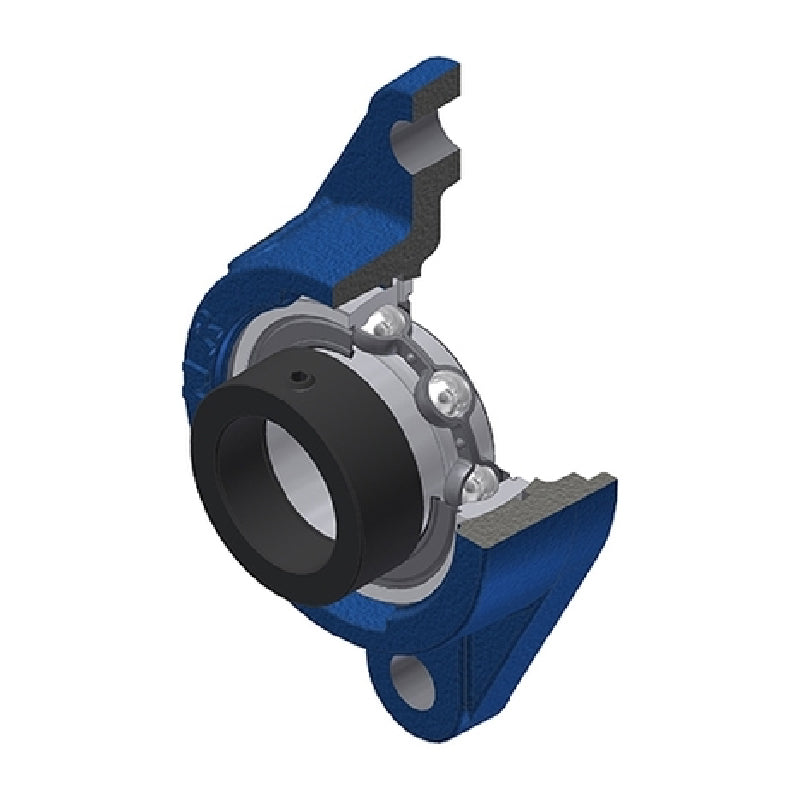

SNR ESFLE201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore Eccentric Collar Insert - Allow 2-3 Days
$41.61 ex VAT
$41.61 ex VAT
Sale Sold out

In stock

Price Break
3+ $19.74
4+ $18.63
9+ $18.41
19+ $18.18
49+ $17.96
99+ $17.74
499+ $16.63
999+ $16.41
1999+ $16.19
2999+ $15.97
4999+ $15.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
7UHIEJ23TO
Brand / Quality:
SNR - High Quality
Inside Diameter:
12mm
Style:
ESFLE
Bolt Hole Centres:
76.5mm
Technical

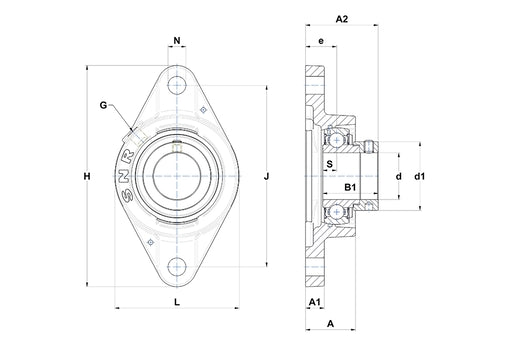

--- Dimensions
Shaft diameter d 12mm
A 26mm
A1 9.5mm
A2 39.1mm
B 19mm
B1 28.6mm
d1 27.2mm
e 17mm
H 99mm
J 76.5mm
L 57mm
N 11.5mm
S 6.5mm
G M6
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.4 kg
