• SNR ESFL208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFL208-SNR

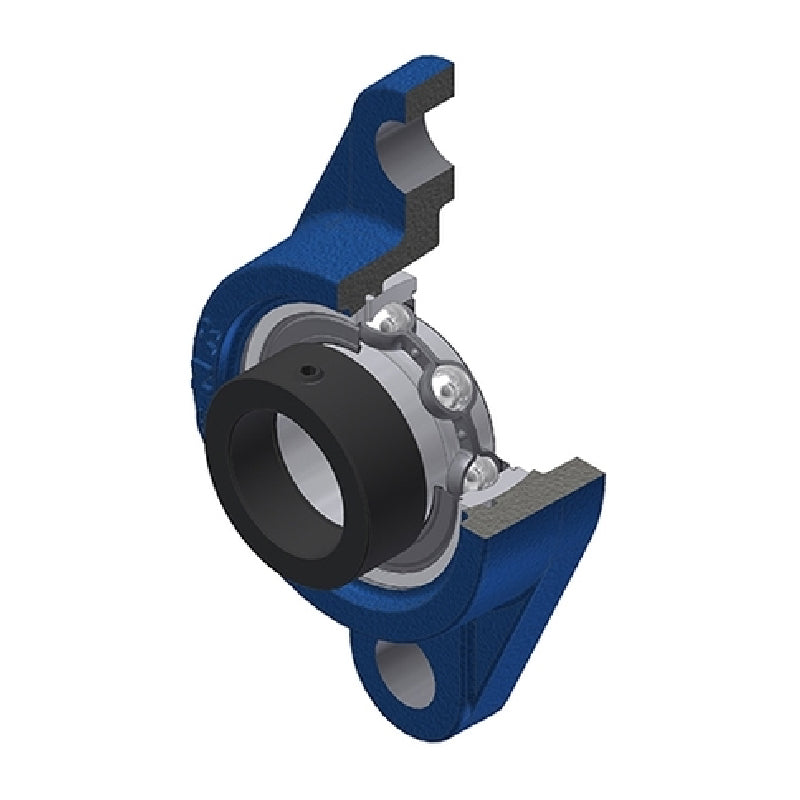

SNR ESFL208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFL208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
$68.75 ex VAT
$68.75 ex VAT
Sale Sold out

In stock

Price Break
3+ $32.60
4+ $30.77
9+ $30.40
19+ $30.04
49+ $29.67
99+ $29.30
499+ $27.47
999+ $27.10
1999+ $26.74
2999+ $26.37
4999+ $25.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JSMO1G5H2P
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESFL
Bolt Hole Centres:
144mm
Technical

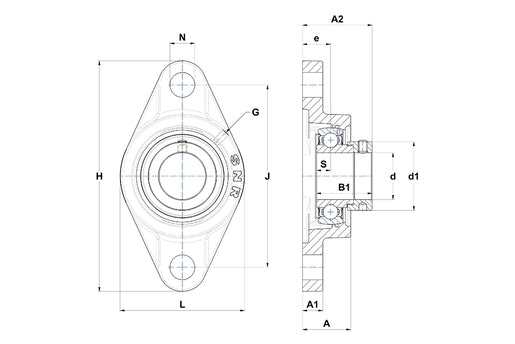

--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 14mm
A2 53.7mm
B 30.2mm
B1 43.7mm
d1 58mm
e 21mm
H 175mm
J 144mm
L 100mm
N 16mm
S 11mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.49 kg
