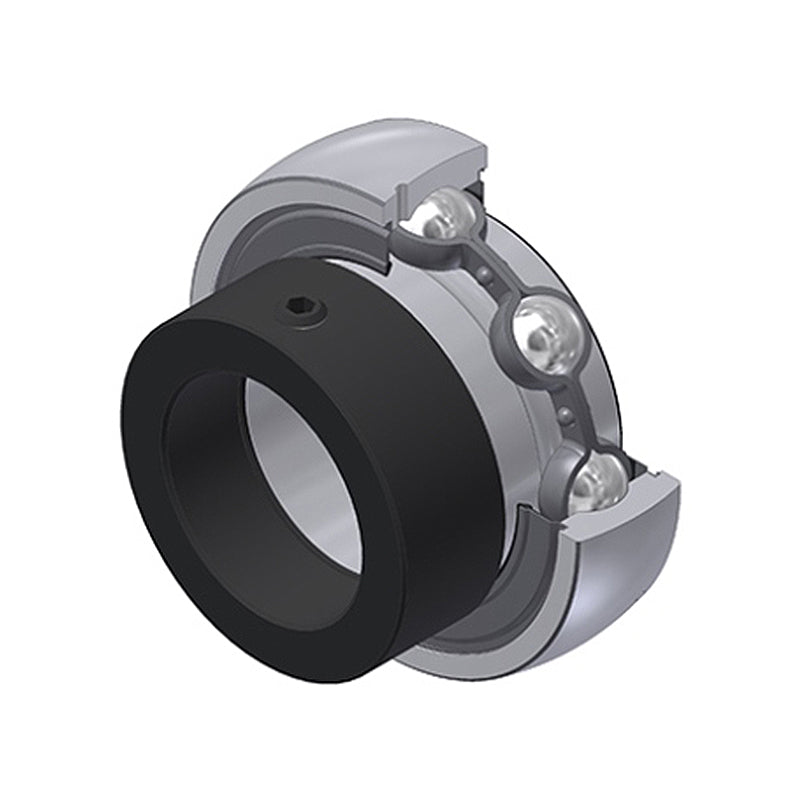

• SNR ES209-26G2 Imperial Flatback Spherical Outer Bearing Insert 1-5/8 inch Bore 85mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
1 1

SKU: ES209-26G2-SNR

SNR ES209-26G2 Imperial Flatback Spherical Outer Bearing Insert 1-5/8 inch Bore 85mm Outside Diameter with Eccentric Collar - Allow 2-3 Days

SNR ES209-26G2 Imperial Flatback Spherical Outer Bearing Insert 1-5/8 inch Bore 85mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
$53.57 ex VAT
$53.57 ex VAT
Sale Sold out

Equivalent to: ES209-26

In stock

Price Break
3+ $25.40
5+ $23.98
9+ $23.69
19+ $23.40
49+ $23.12
74+ $22.83
99+ $21.41
199+ $21.12
249+ $20.84
499+ $20.55
999+ $19.98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UGVR8M2FWX
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
41.275mm = 1.625 (1-5/8) inch
Outside Diameter:
85mm
Width:
43.7mm
Style:
ES
Technical
d 1-5/8 inch
d 41.275mm
D 85mm
C 19mm
B 30.2mm
B1 43.7mm
B2 18.3mm
d1 62mm
S 11mm
m 6.5mm
C1 6.5mm
r min 1.1mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 31.9kN
Static load rating C0 20.8kN
Weight 0.8kg
