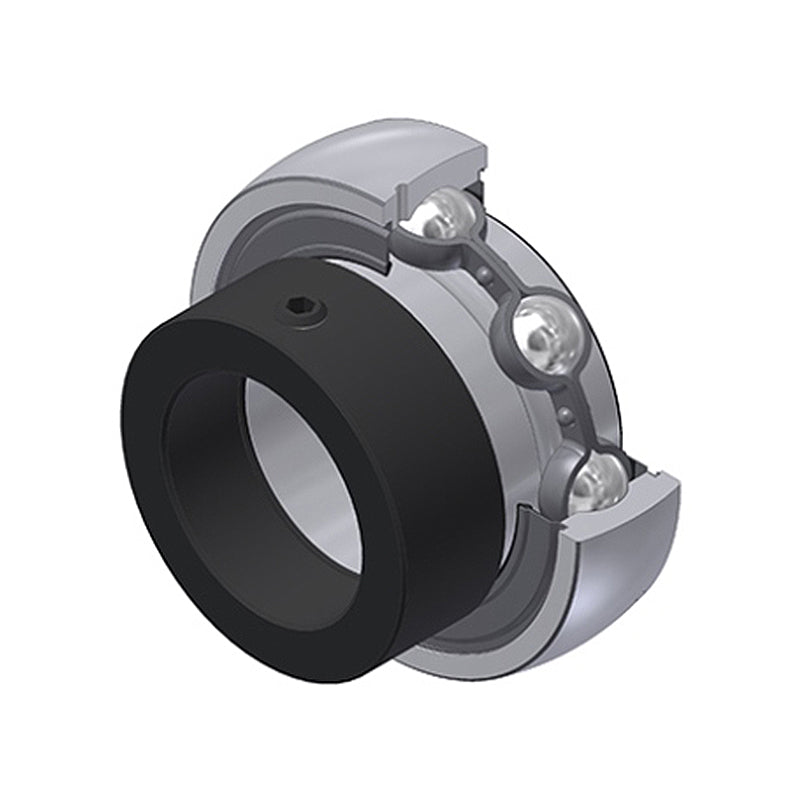

• SNR ES206-18G2 Imperial Flatback Spherical Outer Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter with Eccentric Collar
1 1

SKU: ES206-18G2-SNR

SNR ES206-18G2 Imperial Flatback Spherical Outer Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter with Eccentric Collar

SNR ES206-18G2 Imperial Flatback Spherical Outer Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter with Eccentric Collar
$33.16 ex VAT
$33.16 ex VAT
Sale Sold out

Equivalent to: ES206-18

In stock

Price Break
3+ $15.73
5+ $14.85
9+ $14.67
19+ $14.49
49+ $14.32
74+ $14.14
99+ $13.26
199+ $13.08
249+ $12.90
499+ $12.73
999+ $12.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UGVR8M2FWX
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
28.575mm = 1.125 (1-1/8) inch
Outside Diameter:
62mm
Width:
35.7mm
Style:
ES
Technical
d 1-1/8 inch
d 28.575mm
D 62mm
C 16mm
B 23.8mm
B1 35.7mm
B2 15.9mm
d1 44.1mm
S 9mm
m 6mm
C1 5mm
r min 0.6mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 19.5kN
Static load rating C0 11.2kN
Weight 0.4kg
