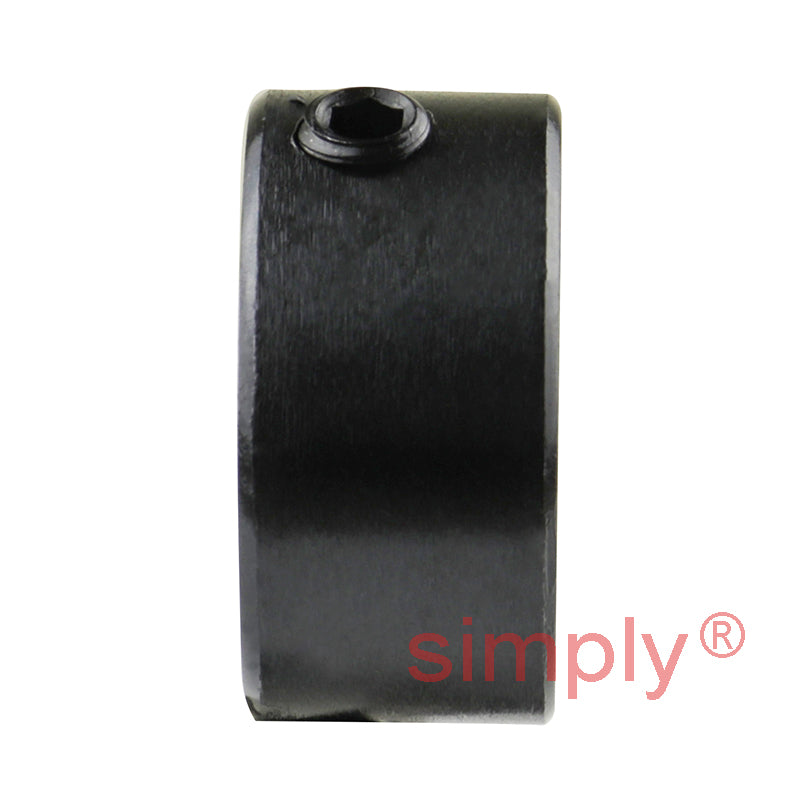

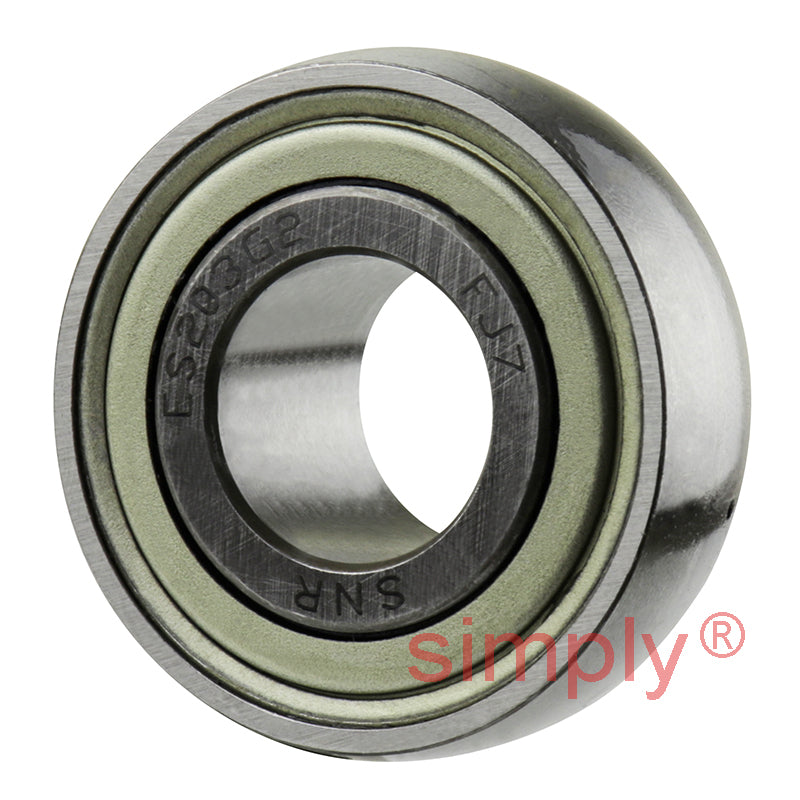

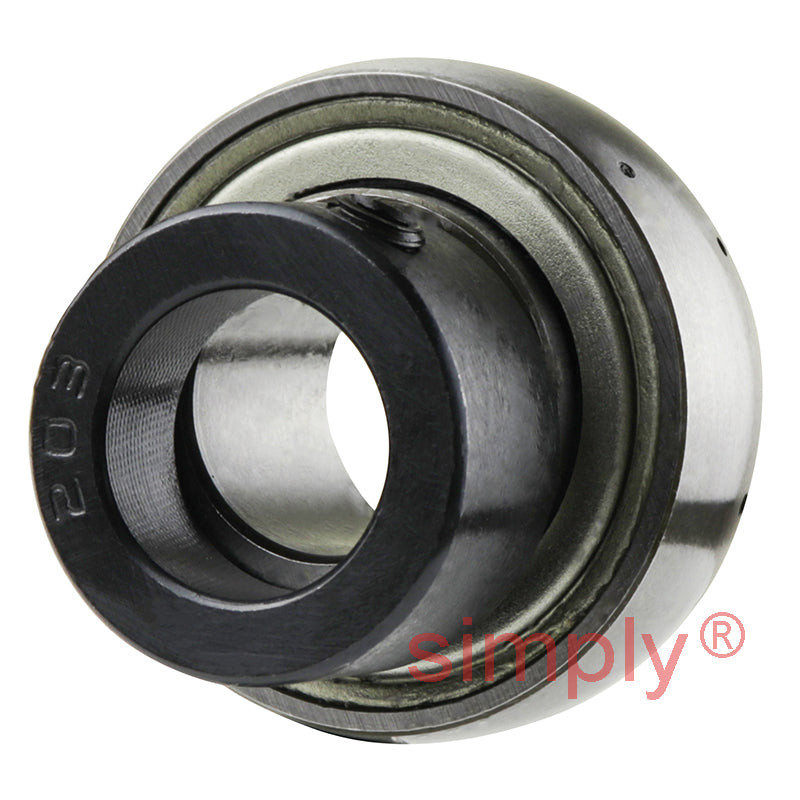

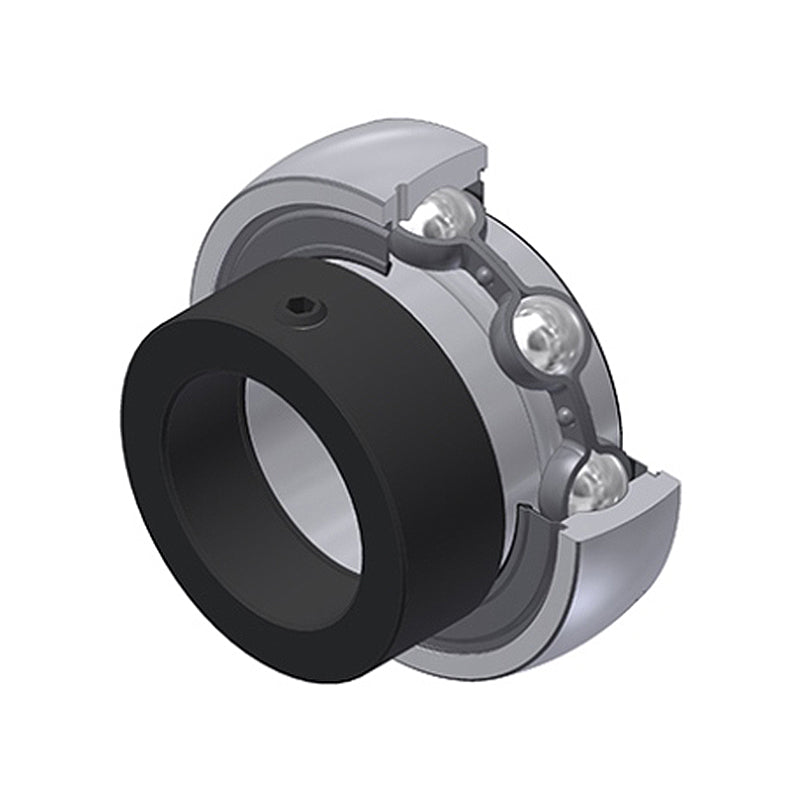

• SNR ES203G2 Metric Flatback Spherical Outer Bearing Insert 17mm Bore 40mm Outside Diameter with Eccentric Collar
1 1

SKU: ES203G2-SNR

SNR ES203G2 Metric Flatback Spherical Outer Bearing Insert 17mm Bore 40mm Outside Diameter with Eccentric Collar

SNR ES203G2 Metric Flatback Spherical Outer Bearing Insert 17mm Bore 40mm Outside Diameter with Eccentric Collar
$23.69 ex VAT
$23.69 ex VAT
Sale Sold out

Equivalent to: ES203

In stock

Price Break
3+ $11.24
5+ $10.60
9+ $10.48
19+ $10.35
49+ $10.23
74+ $10.10
99+ $9.47
199+ $9.34
249+ $9.22
499+ $9.09
999+ $8.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UGVR8M2FWX
Brand / Quality:
SNR - High Quality
Thread Size:
M6x1
Inside Diameter:
17mm
Outside Diameter:
40mm
Width:
28.6mm
Style:
ES
Technical
d 17mm
D 40mm
C 12mm
B 19.1mm
B1 28.6mm
B2 13.5mm
d1 27.2mm
S 6.5mm
m 5mm
C1 3.6mm
r min 0.6mm
G M6x1
Wrench Size 3mm
Set screw torque 5.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 9.6kN
Static load rating C0 4.8kN
Weight 0.1kg
