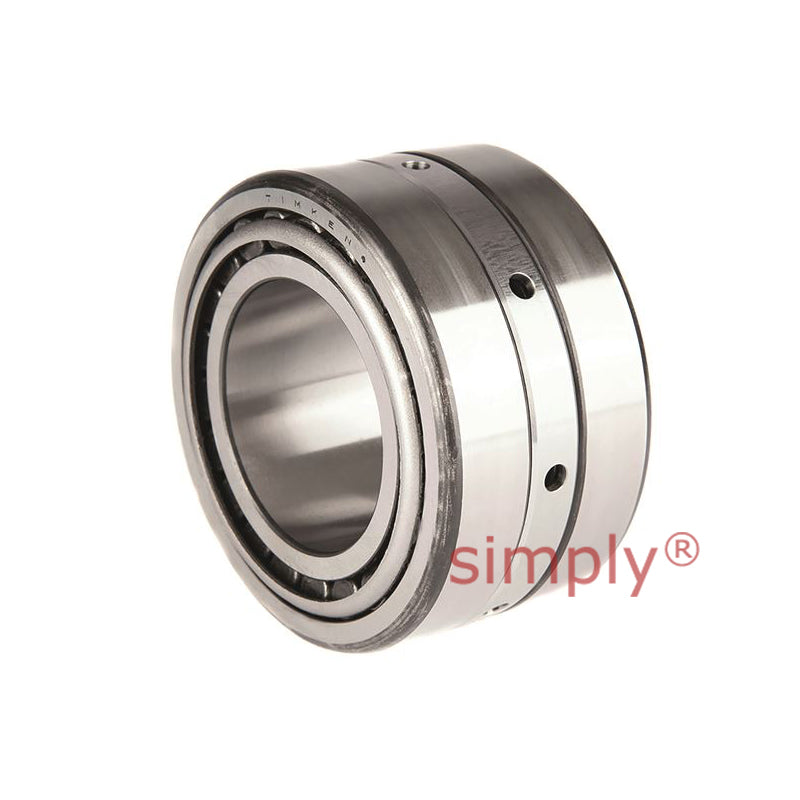

Timken EE420800D/421437/Y1S-421437 TDI Double Inner Race Taper Roller Bearing 8x14.372x6.25x6 inch
Timken EE420800D/421437/Y1S-421437 TDI Double Inner Race Taper Roller Bearing 8x14.372x6.25x6 inch
Out of stock
Description
Description

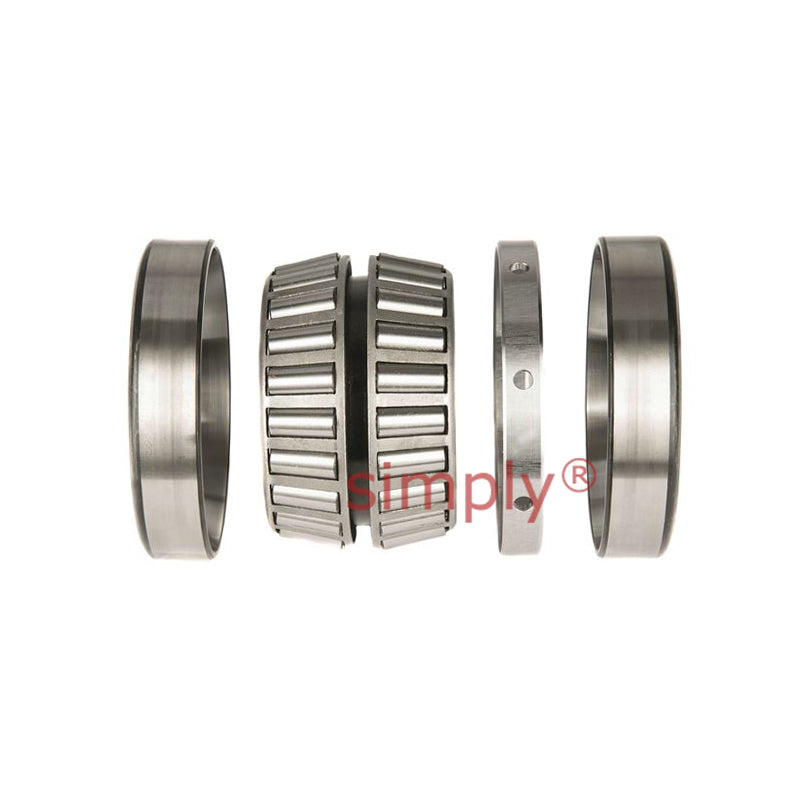

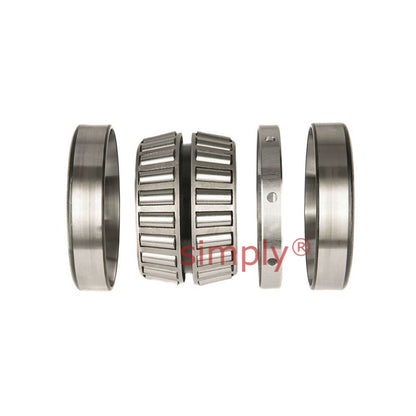

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 203.2mm = 8 inch
- Outside Diameter:
- 365.05mm = 14.372 inch
- Width:
- 158.75mm = 6.25 (6-1/4) inch
Technical
Technical
| d | 203.2mm = 8 inch |
|---|---|
| D | 365.049mm = 14.372 inch |
| T | 158.75mm = 6.25 inch |
| C | 152.4mm = 6 inch |
| Dynamic (1) C1 | 1880000N |
| Factors (5) e | 0.4 |
| Factors (5) Y1 | 1.68 |
| Factors (5) Y2 | 2.5 |
| Dynamic (2) C90 | 280000N |
| Dynamic (2) Ca90 | 193000N |
| Dynamic (2) C90(2) | 488000N |
| Factors (5) K | 1.45 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 230mm = 9.06 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 329mm = 12.95 inch |
| G1 | 1150 |
| G2 | 128 |
| Cg | 0.145 |
