SKU: EE325296D/325420/Y1S-325420-TIM

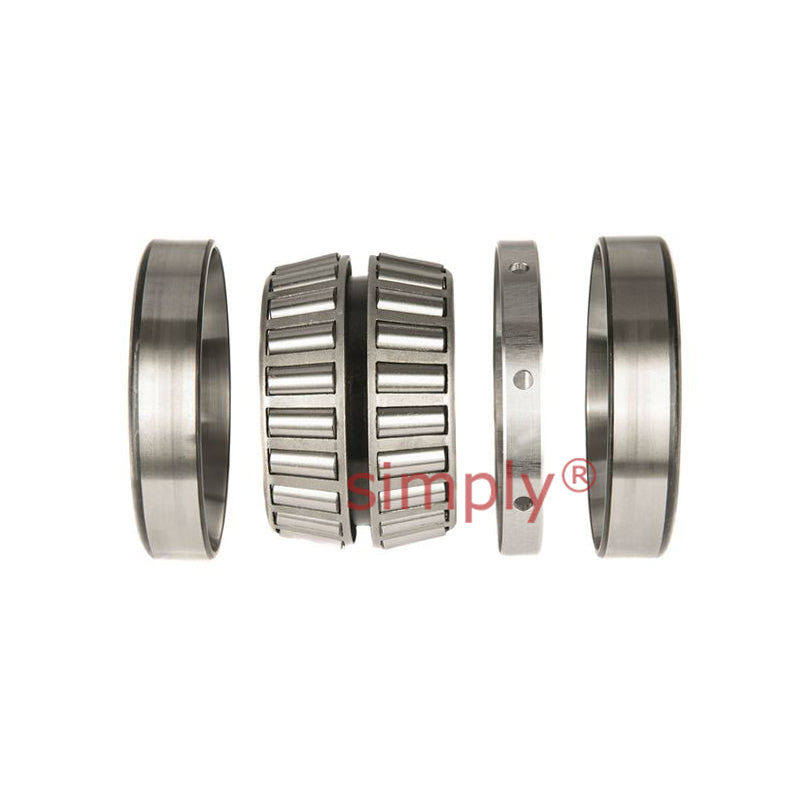

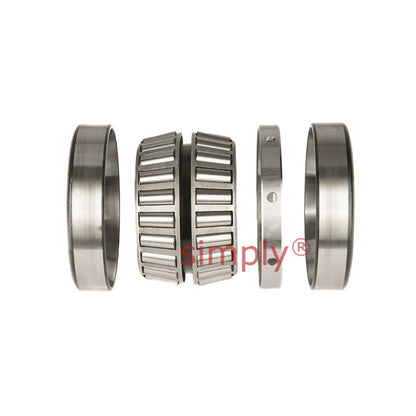

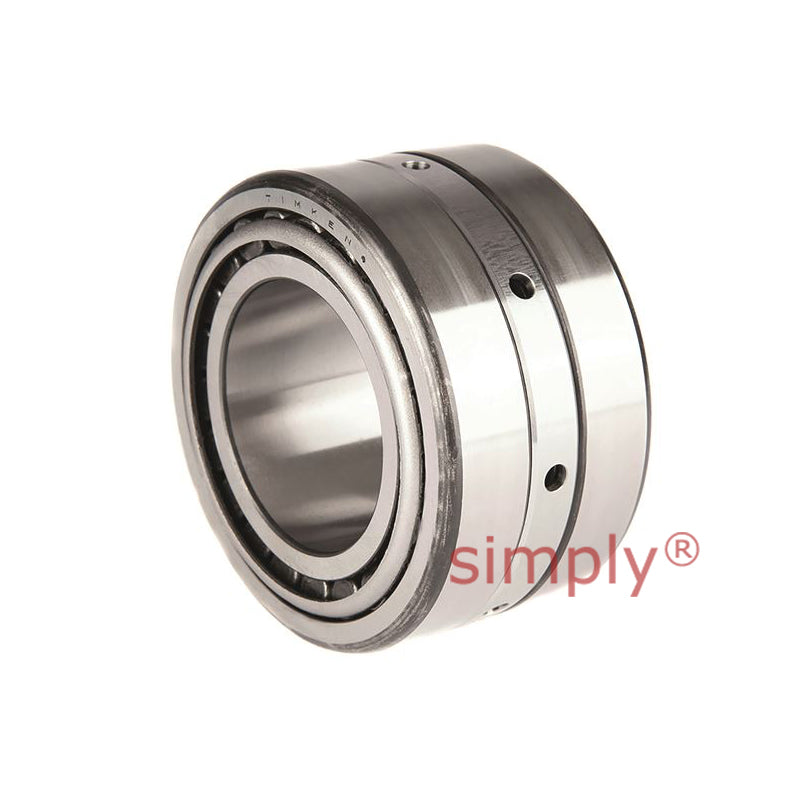

Timken EE325296D/325420/Y1S-325420 TDI Two-Row Taper Roller Bearing 29.5x42x14.25x13.75 inch
Timken EE325296D/325420/Y1S-325420 TDI Two-Row Taper Roller Bearing 29.5x42x14.25x13.75 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 749.3mm = 29.5 (29-1/2) inch
- Outside Diameter:
- 1066.8mm = 42 inch
- Width:
- 361.95mm = 14.25 (14-1/4) inch
Technical
Technical
| d | 749.3mm = 29.5 inch |
|---|---|
| D | 1066.8mm = 42 inch |
| T | 361.95mm = 14.25 inch |
| C | 349.25mm = 13.75 inch |
| Dynamic (1) C1 | 12200000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.05 |
| Factors (5) Y2 | 3.05 |
| Dynamic (2) C90 | 1810000N |
| Dynamic (2) Ca90 | 1020000N |
| Dynamic (2) C90(2) | 3150000N |
| Factors (5) K | 1.77 |
| Shaft max shaft fillet radius R (3) | 9.2mm = 0.36 inch |
| Shaft backing shoulder diameter da | 806.5mm = 31.75 inch |
| Housing max shaft fillet radius r (3) | 12.7mm = 0.5 inch |
| Housing backing shoulder diameter Db | 996mm = 39.21 inch |
| G1 | 21200 |
| G2 | 980 |
| Cg | 0.3551 |
