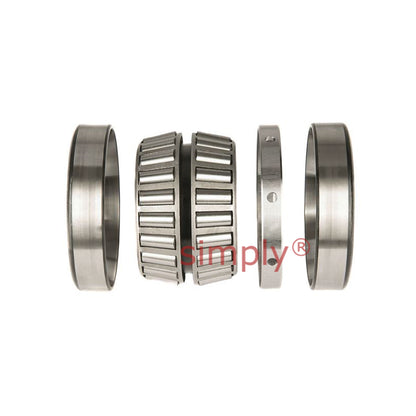

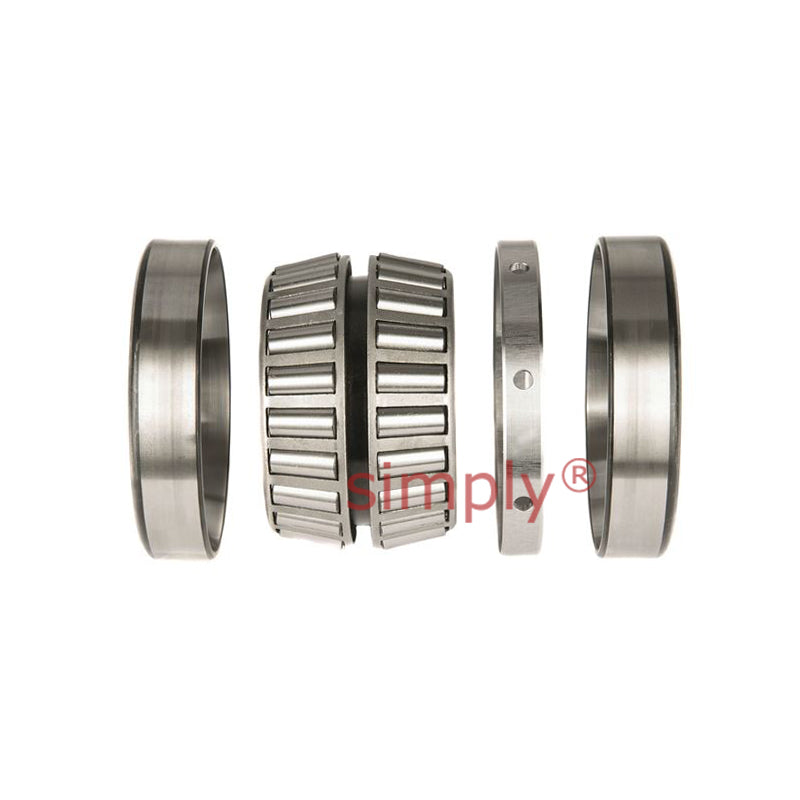

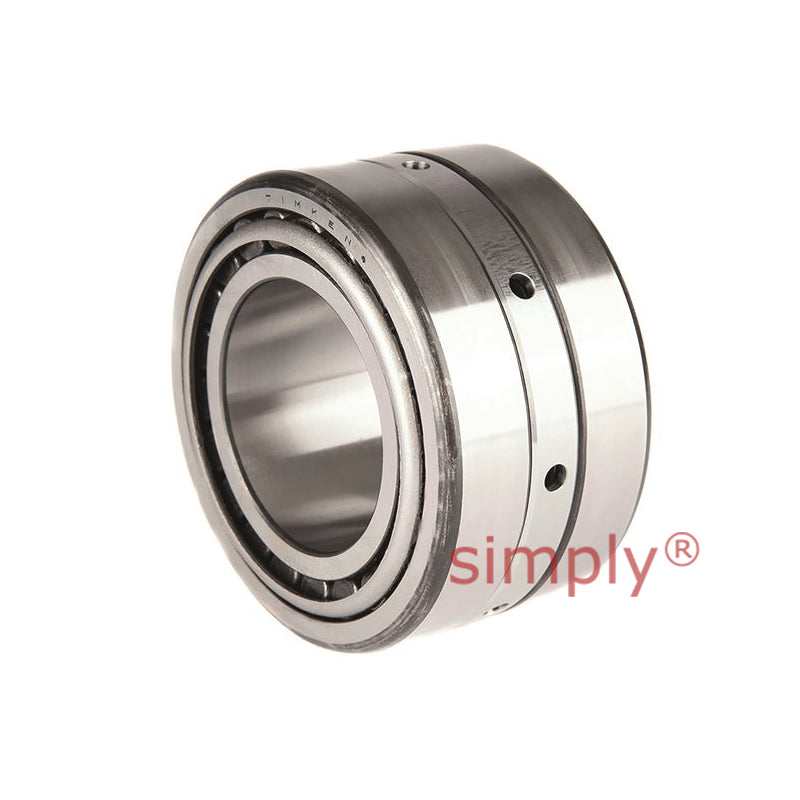

Timken EE138131D/138172/Y1S-138172 TDI Double Inner Race Taper Roller Bearing 13.004x17.245x4.75x4.5 inch
Timken EE138131D/138172/Y1S-138172 TDI Double Inner Race Taper Roller Bearing 13.004x17.245x4.75x4.5 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 330.2mm = 13 inch
- Outside Diameter:
- 438.05mm = 17.246 inch
- Width:
- 120.65mm = 4.75 (4-3/4) inch
Technical
Technical
| d | 330.302mm = 13.004 inch |
|---|---|
| D | 438.023mm = 17.245 inch |
| T | 120.65mm = 4.75 inch |
| C | 114.3mm = 4.5 inch |
| Dynamic (1) C1 | 1250000N |
| Factors (5) e | 0.46 |
| Factors (5) Y1 | 1.47 |
| Factors (5) Y2 | 2.19 |
| Dynamic (2) C90 | 187000N |
| Dynamic (2) Ca90 | 146000N |
| Dynamic (2) C90(2) | 325000N |
| Factors (5) K | 1.27 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 347mm = 13.66 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 412mm = 16.22 inch |
| G1 | 1970 |
| G2 | 290 |
| Cg | 0.1786 |
