SKU: EAL10D-FLURO

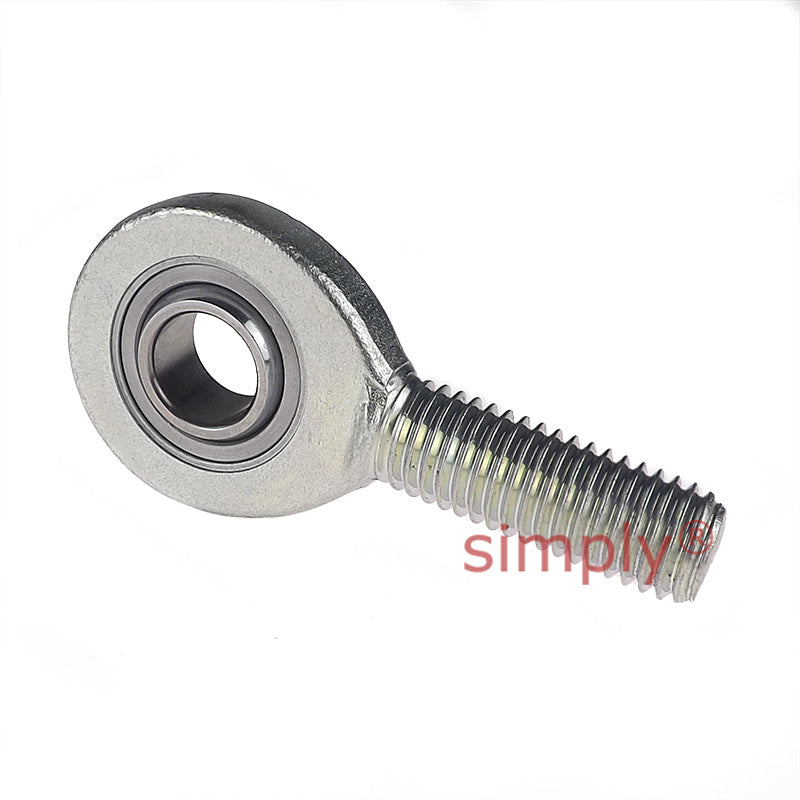

Fluro EAL10D Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M10 Thread
Fluro EAL10D Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M10 Thread
Out of stock
Share this product
Description
Description
Fluro EA..D (-2RS) Series Zinc Plated Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated with maintenance free Spherical Plain Bearings. For use at high unidirectional loads and limited fitting dimensions.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M10
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 10mm
- Inside Diameter:
- 10mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 10mm |
|---|---|
| B | 9mm |
| M | 7mm |
| A | 29mm |
| F | 48mm |
| L | 62mm |
| O | 13.2mm |
| Thread Size G | M10 |
| GL | 26mm |
| Static Load Co | 19.9kN |
| Dynamic Load | 8.6kN |
| Approx weight | 0.05kg |
