SKU: EA17D-FLURO

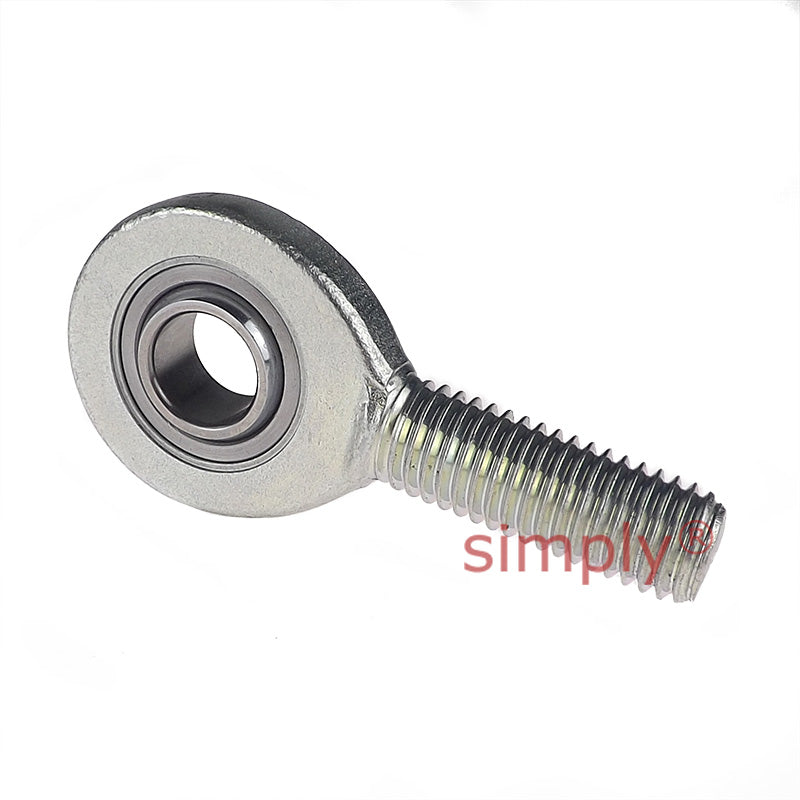

Fluro EA17D Right Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M16 Thread
Fluro EA17D Right Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M16 Thread
Out of stock
Share this product
Description
Description
Fluro EA..D (-2RS) Series Zinc Plated Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated with maintenance free Spherical Plain Bearings. For use at high unidirectional loads and limited fitting dimensions.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M16
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 16mm
- Inside Diameter:
- 17mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 17mm |
|---|---|
| B | 14mm |
| M | 11mm |
| A | 46mm |
| F | 69mm |
| L | 92mm |
| O | 20.7mm |
| Thread Size G | M16 |
| GL | 36mm |
| Static Load Co | 54kN |
| Dynamic Load | 22.5kN |
| Approx weight | 0.19kg |
