SKU: DGK60SK-DURB

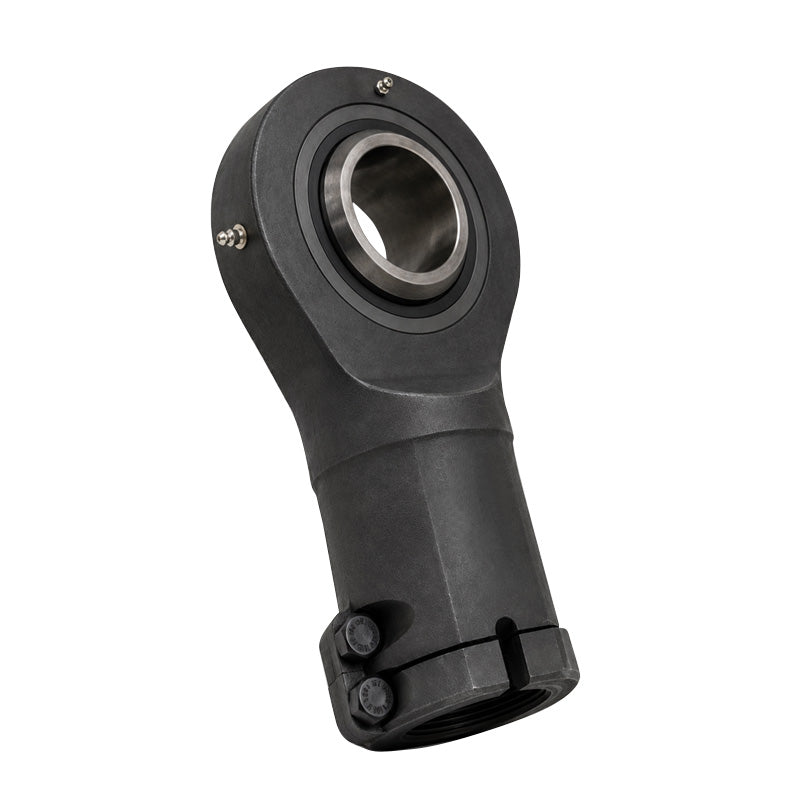

Durbal DGK60SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M64x3 Thread
Durbal DGK60SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M64x3 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M64x3
- Thread M / F:
- Female
- Inside Diameter:
- 40mm
Technical
Technical
| d | 60mm |
|---|---|
| d1 | 66.8mm |
| d2 | 130mm |
| d4 | 87mm |
| d5 | 118mm |
| dk | 80mm |
| G (Thread) | M64x3mm |
| B | 50mm |
| C1 | 44mm |
| C2 | 46mm |
| l3 | 95mm |
| l4 | 240mm |
| l7 | 65mm |
| h1 | 170mm |
| tilt angle α | 7 deg |
| weight | 6.5kg |
| basic load rating dyn C | 196 kN |
| basic load rating stat Co | 424 kN |
| radial clearance CN | 8-120 µm |
