SKU: DGK160SK-DURB

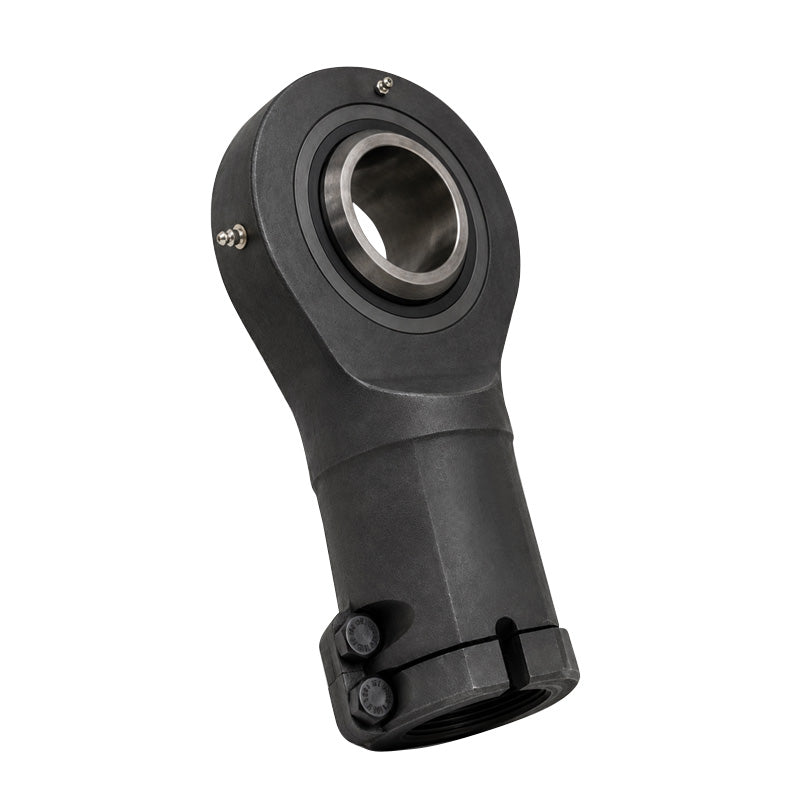

Durbal DGK160SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M180x4 Thread
Durbal DGK160SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M180x4 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M180x4
- Thread M / F:
- Female
- Inside Diameter:
- 125mm
Technical
Technical
| d | 160mm |
|---|---|
| d1 | 170.2mm |
| d2 | 480mm |
| d4 | 260mm |
| d5 | 290mm |
| dk | 200mm |
| G (Thread) | M180x4mm |
| B | 110mm |
| C1 | 105mm |
| C2 | 105mm |
| l3 | 240mm |
| l4 | 710mm |
| l7 | 200mm |
| h1 | 460mm |
| tilt angle α | 8 deg |
| weight | 185kg |
| basic load rating dyn C | 1096 kN |
| basic load rating stat Co | 3440 kN |
| radial clearance CN | 8-192 µm |
