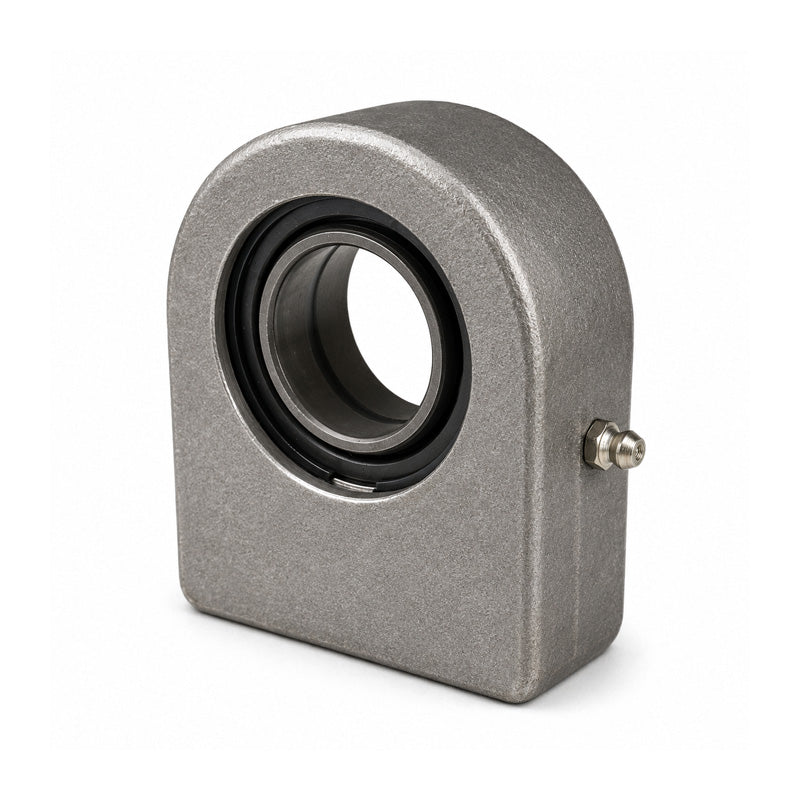

Durbal DGF90DO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End

DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Square Welding End): Threaded female hydraulic rod end consisting of a forged, weldable steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for heavy static or changing loads, shock loads. Suitable for the fixing of piston rod ends and hydraulic cylinder bases. Rod ends can be greased subsequently by means of a conical grease nipple. Temperature range -40 deg C to +200 deg C.

Fixed as standard with maitenance required DGE_ES radial-spherical-plain bearings and fixed with retaining rings; with square welding end

Brand / Quality:

Durbal - High Quality

Inside Diameter:

90mm
