SKU: DGE710ES-DURB

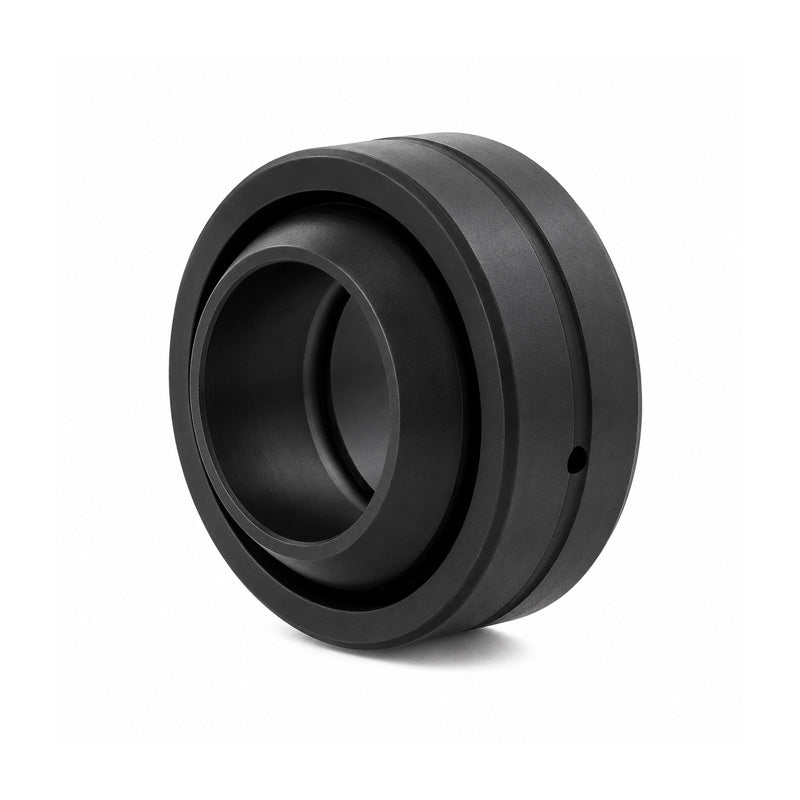

Durbal DGE710ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 710x950x325mm
Durbal DGE710ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 710x950x325mm
Equivalent to: GE710DO GE710ES
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required XXL-Large-Radial-Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes. For use with high static and alternating loads and for shock loads. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 710mm
Technical
Technical
| d | 710mm |
|---|---|
| d1 | 763.7mm |
| D | 950mm |
| dk | 830mm |
| B | 325mm |
| C | 275mm |
| rs | 3mm |
| r1s | 6mm |
| tilt angle α | 3.7 deg |
| weight | 693kg |
| basic load rating dyn C | 19401 kN |
| basic load rating stat Co | 97006 kN |
| CN | 170-350 µm |
