SKU: DGE400ES-DURB

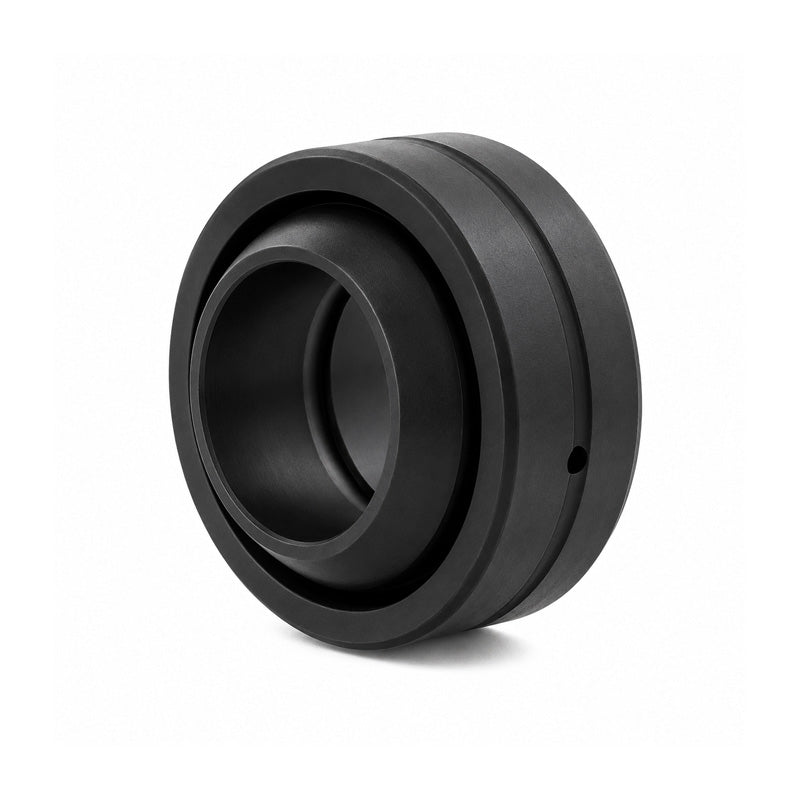

Durbal DGE400ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 400x540x190mm
Durbal DGE400ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 400x540x190mm
Equivalent to: GE400DO GE400ES
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required XXL-Large-Radial-Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes. For use with high static and alternating loads and for shock loads. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 400mm
Technical
Technical
| d | 400mm |
|---|---|
| d1 | 429.8mm |
| D | 540mm |
| dk | 470mm |
| B | 190mm |
| C | 160mm |
| rs | 1.5mm |
| r1s | 4mm |
| tilt angle α | 3.9 deg |
| weight | 133kg |
| basic load rating dyn C | 6392 kN |
| basic load rating stat Co | 31960 kN |
| CN | 135-261 µm |
