SKU: DG05x10-DURB

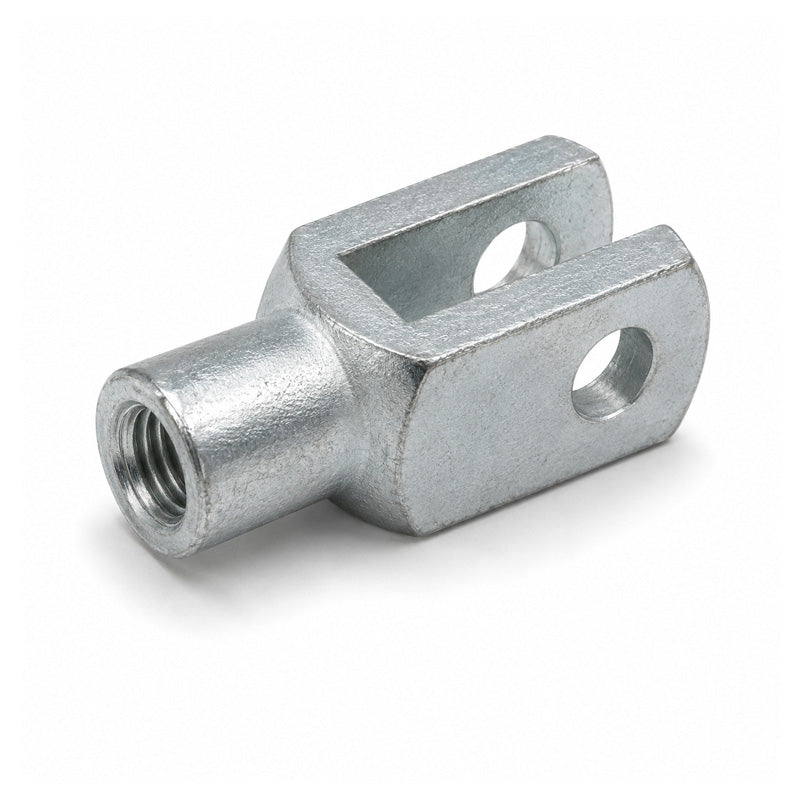

Durbal DG05X10 Right Hand Female Galvanised Steel Clevis 5mm Bore 10mm Base / Bore Center M5x0.8 Thread - Allow 7-10 Days
Durbal DG05X10 Right Hand Female Galvanised Steel Clevis 5mm Bore 10mm Base / Bore Center M5x0.8 Thread - Allow 7-10 Days
Out of stock
Share this product
Description
Description
Durbal Galvanised Steel Clevis: A Clevis (also known as a yoke) is a versatile mechanical linkage component commonly used in industrial and mechanical applications. Clevises are paired with a clevis pin (available separately) that fits through the holes at the end of the clevis prongs. Made according to DIN 71752 and crafted from surface galvanised steel, these clevises feature a forked end with holes for secure attachment to rods, cables, or other hardware, while the opposite end has a female thread for connection to machinery or equipment.
- Brand / Quality:
- Durbal - High Quality
Technical
Technical

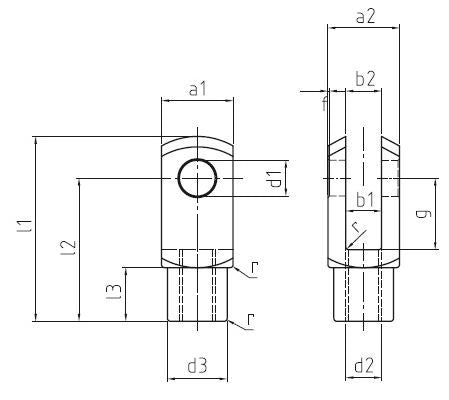

| Thread Direction | Right |
|---|---|
| d1 | 5mm |
| g | 10mm (+/- 0.5mm) |
| a1 | 10mm |
| a2 | 10mm |
| b1 | 5mm |
| b2 | 5mm |
| d2 | M5x0.8 |
| d3 | 9mm (+/- 0.3mm) |
| f | 0.5mm (+/- 0.2mm) |
| l1 | 26mm (+/- 0.5mm) |
| l2 | 20mm (+/-0.4mm) |
| l3 | 7.5mm (+/-0.3mm) |
| r | 0.5mm |
| Weight | 0.009 kg |
