SKU: CUC214

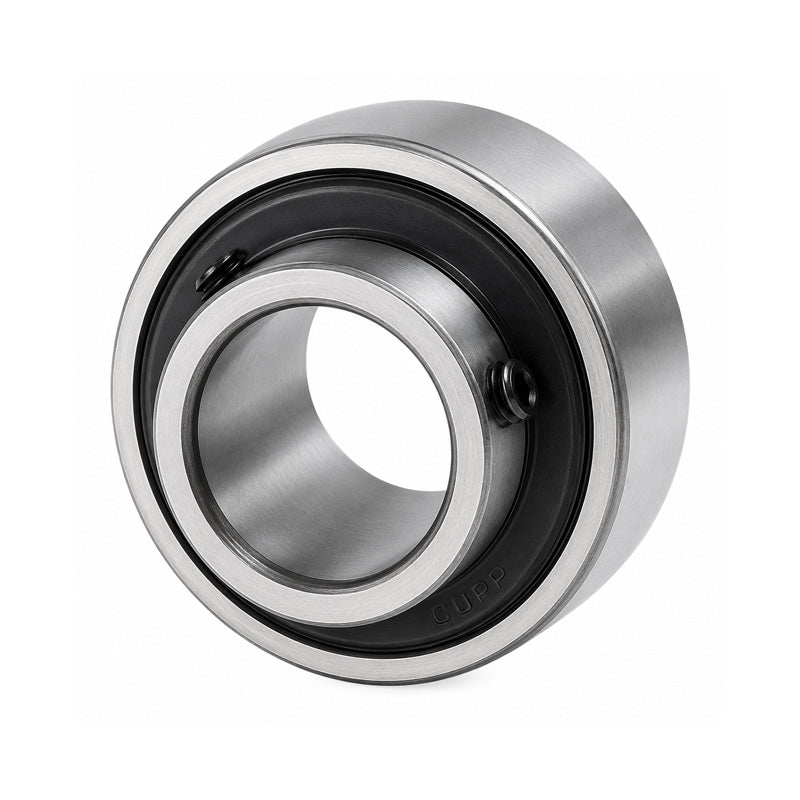

CUC214 Metric Cylindrical Bearing Insert with 70mm Bore 125mm Outside Dia
CUC214 Metric Cylindrical Bearing Insert with 70mm Bore 125mm Outside Dia
Equivalent to: UR214 RB214
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| Bi | 74.6mm |
| Be | 29mm |
| N | 30.2mm |
| M | 44.4mm |
| G | 12mm |
| ds | M12x1.5, 7/16-20UNF |
| Dynamic Load | 60800 N |
| Static Load | 45000 N |
| Weight | 2.05 kg |
