SKU: CUC212-36

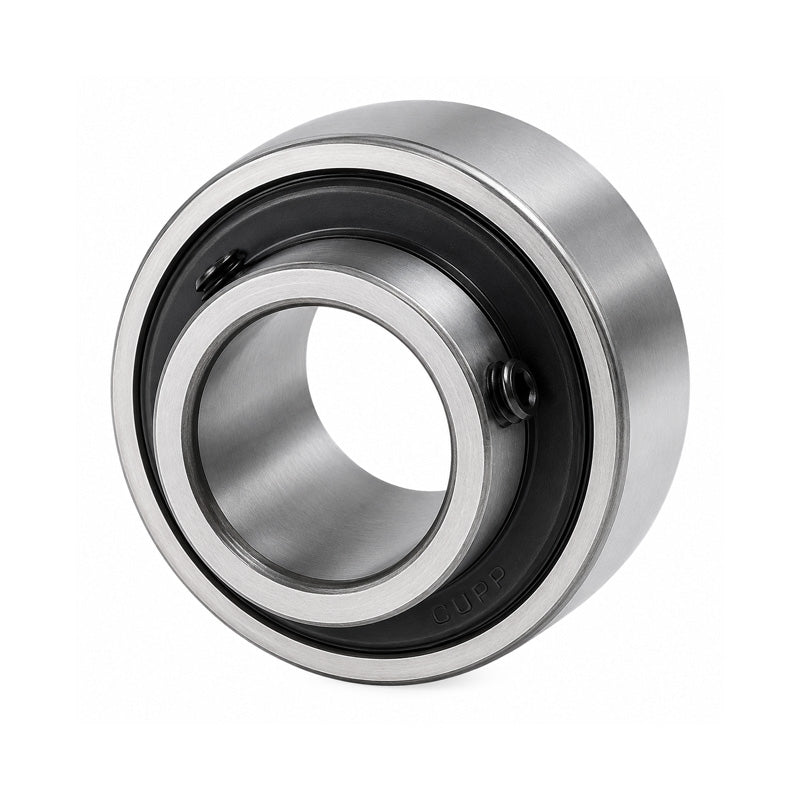

CUC212-36 Imperial Cylindrical Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
CUC212-36 Imperial Cylindrical Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
Equivalent to: UR212-36 RB212-36
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 110mm
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| N | 25.4mm |
| M | 39.7mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 47700 N |
| Static Load | 32900 N |
| Weight | 1.67 kg |
