SKU: CUC210-32

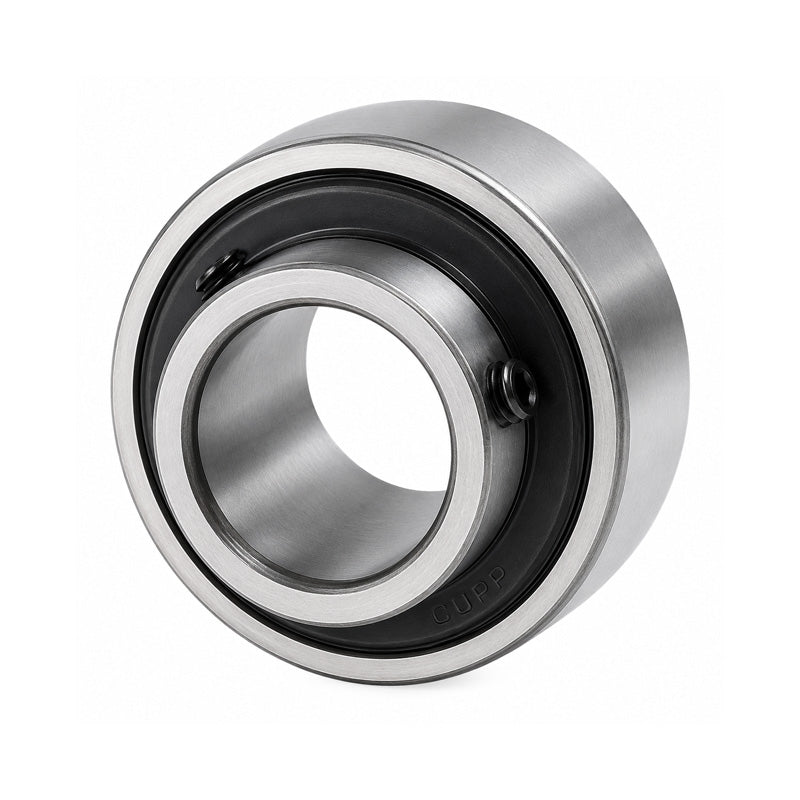

CUC210-32 Imperial Cylindrical Bearing Insert with 2 inch Bore 90mm Outside Dia
CUC210-32 Imperial Cylindrical Bearing Insert with 2 inch Bore 90mm Outside Dia
Equivalent to: UR210-32 RB210-32
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 (2) inch
- Outside Diameter:
- 90mm
Technical
Technical
| d | 2 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| N | 19mm |
| M | 32.6mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 35000 N |
| Static Load | 23200 N |
| Weight | 0.78 kg |
