SKU: CUC207-22

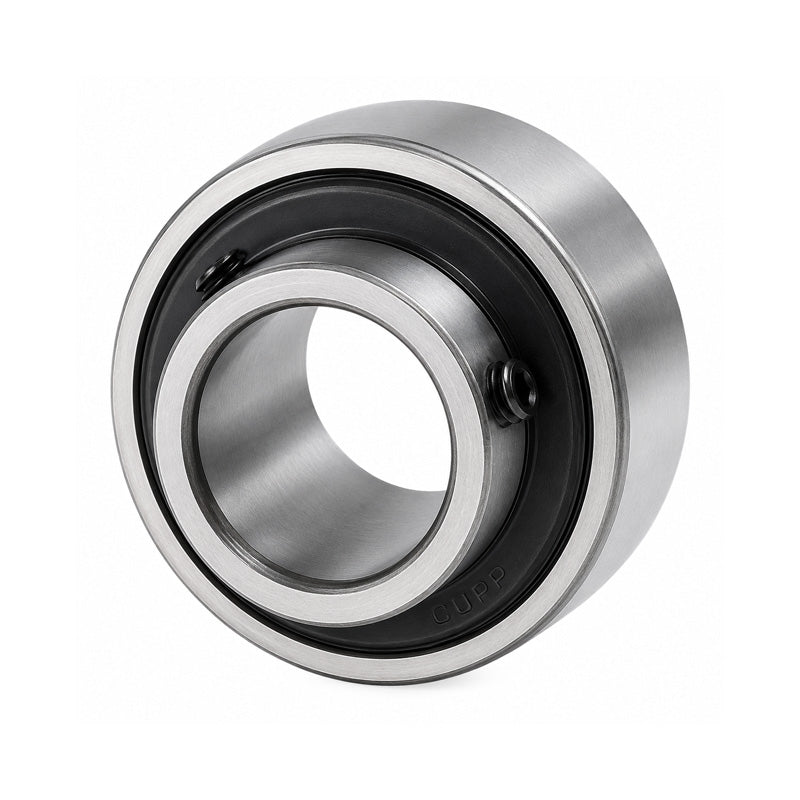

CUC207-22 Imperial Cylindrical Bearing Insert with 1-3/8 inch Bore 72mm Outside Dia
CUC207-22 Imperial Cylindrical Bearing Insert with 1-3/8 inch Bore 72mm Outside Dia
Equivalent to: UR207-22 RB207-22
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 72mm
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| N | 17.5mm |
| M | 25.4mm |
| G | 7mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 25700 N |
| Static Load | 15300 N |
| Weight | 0.48 kg |
