SKU: CSB.212

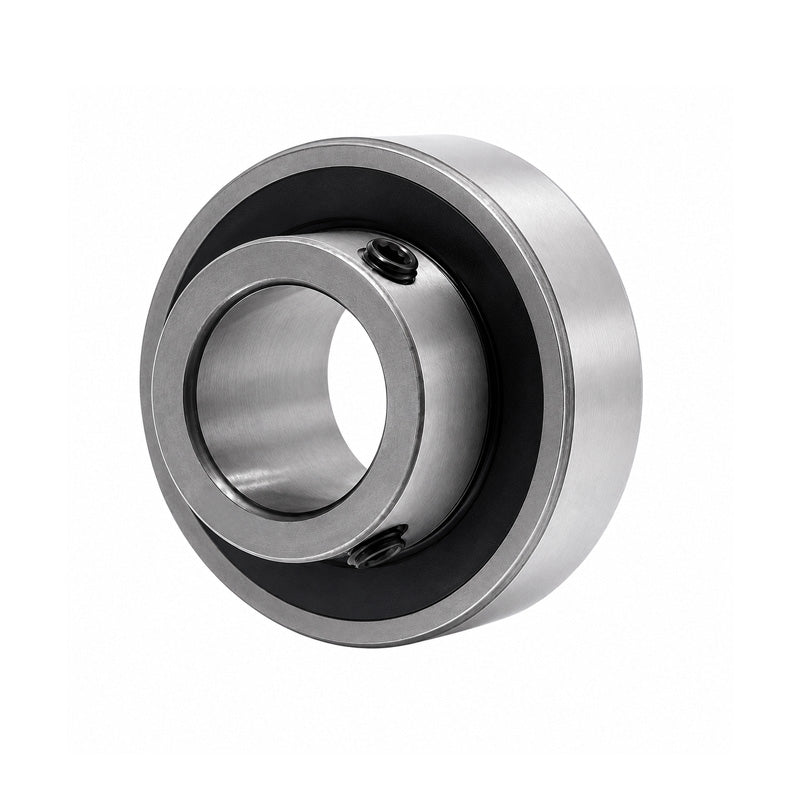

CSB212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
CSB212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
Out of stock
Share this product
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- CSB
Technical
Technical
| d | 60mm |
|---|---|
| Be | 24mm |
| D | 110mm |
| Bi | 53.7mm |
| n | 14.9mm |
| m | 38.8mm |
| G | 9.8mm |
| h | 8mm |
| Grub screw | M10x1.25 |
| Weight | 1.3 kg |
| Dynamic load | 4850 kgf |
| Static load | 3300 kgf |
