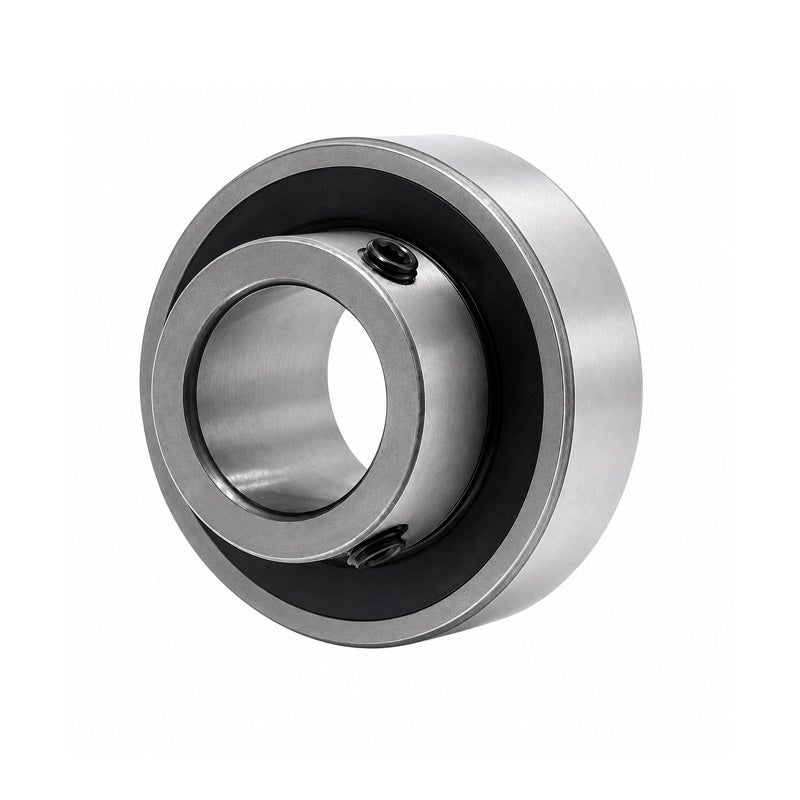

CSB206-19 Imperial Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
CSB206-19 Imperial Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
Out of stock
Share this product
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- CSB
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| Be | 16mm |
| D | 62mm |
| Bi | 30mm |
| n | 8mm |
| m | 22mm |
| G | 5.5mm |
| h | 5mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.27 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
