SKU: CSA.207-23

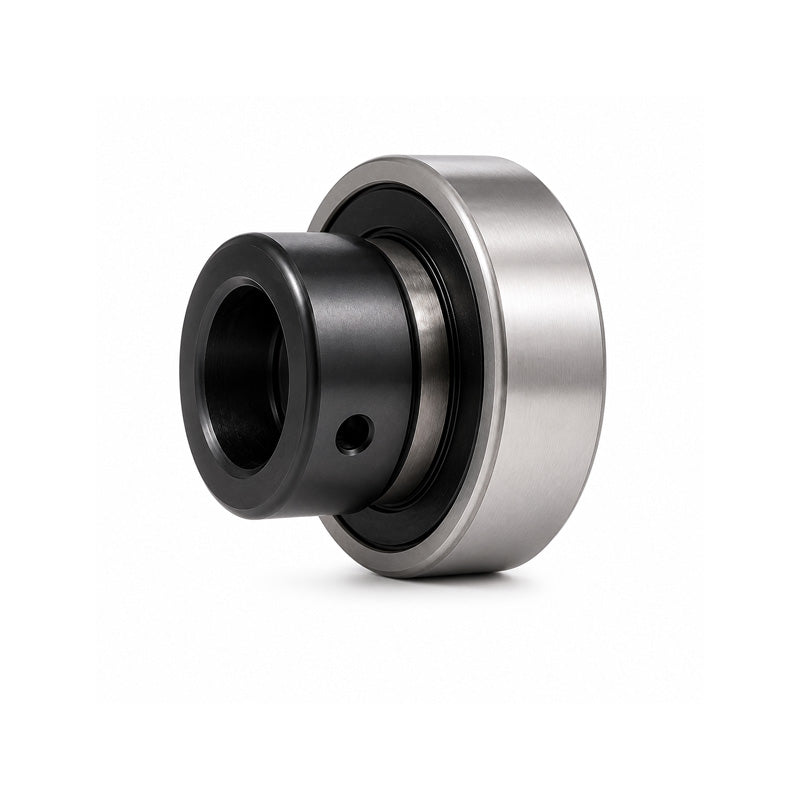

CSA207-23 Imperial Bearing Insert with Locking Collar 1-7/16 inch Bore 72mm Outside Dia
CSA207-23 Imperial Bearing Insert with Locking Collar 1-7/16 inch Bore 72mm Outside Dia
Out of stock
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Style:
- CSA
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| Be | 17mm |
| D | 72mm |
| z | 25.4mm |
| n | 8.5mm |
| m | 16.9mm |
| Bi | 38.9mm |
| k | 55.6mm |
| H | 17.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.5 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
