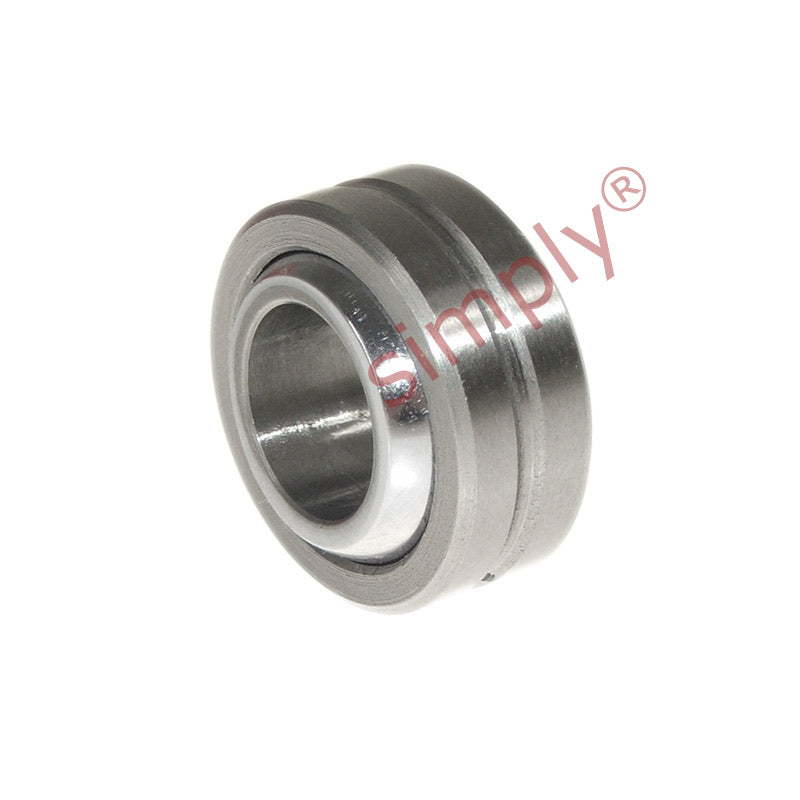

• COM10T PTFE Lined Imperial Spherical Plain Bearing 5/8 inch Bore
1 1

SKU: COM10T-EU

COM10T PTFE Lined Imperial Spherical Plain Bearing 5/8 inch Bore

COM10T PTFE Lined Imperial Spherical Plain Bearing 5/8 inch Bore
$17.58 ex VAT
$17.58 ex VAT
Sale Sold out

In stock

Price Break
10+ $8.35
19+ $7.88
29+ $7.79
39+ $7.69
49+ $7.60
74+ $7.51
99+ $7.04
199+ $6.94
249+ $6.85
499+ $6.76
999+ $6.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Outside Diameter:
30.16mm = 1.187 (1-3/16) inch
Width:
12.7mm = 0.5 (1/2) inch
Technical
b 5/8 inch
w 5/8 inch
h 1/2 inch
D 1-3/16 inch
O 0.78 inch
Static load 94658 N
